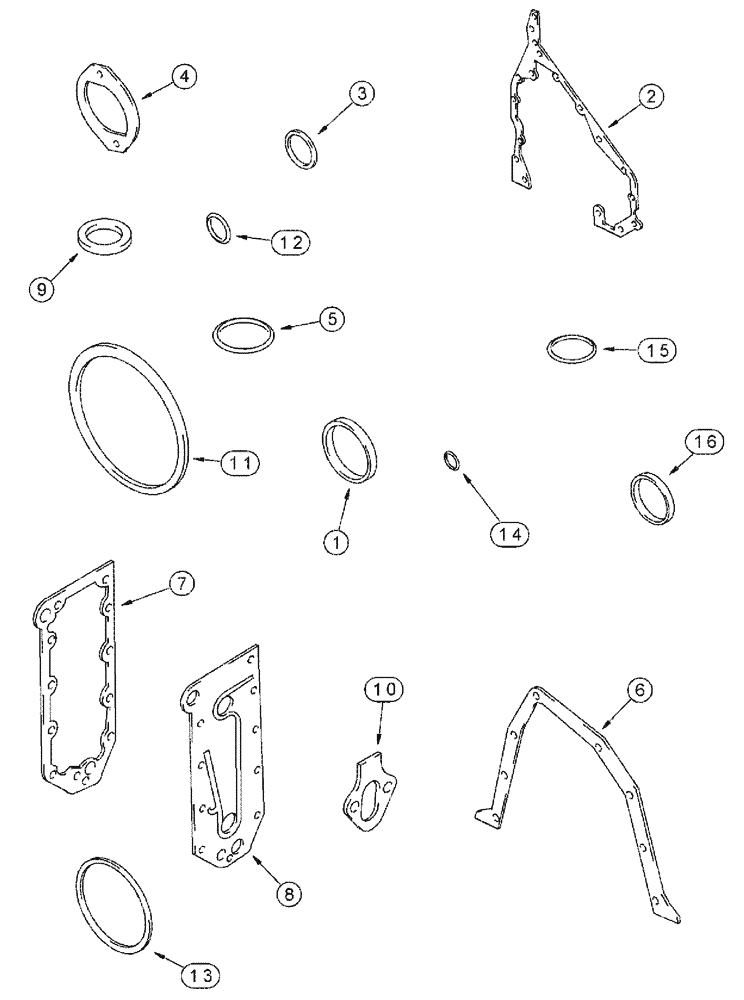

Запчасти Case IH SPX4260 (03-023) - CYLINDER BLOCK GASKET KIT (01) - ENGINE

0

A77855

KIT

Gasket, Cylinder Block

1шт.

For A Complete Engine Overhaul, Order (1) Valve Grind Kit, See Fig. 03-022, (1) Cylinder Block Kit and (1) Oil Pan Gasket Kit, See Fig. 03-312; The Front & Rear Crankshaft Seal Kit, See Fig. 03-018 And The Required Cylinder Head Gasket, See Fig. 03-013.

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

Front Access Cover

1шт.

2

J929253

GASKET

Housing, Gear

1шт.

3

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, Timing Pin Housing

1шт.

4

J938655

GASKET,1.27mm Thk

Access Cover Plate

1шт.

5

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-Ring, Water Pump

1шт.

6

J914301

GASKET

Rear Cover Retainer, Crankshaft

1шт.

7

J918174

GASKET,0.71mm Thk

Cooler Core, Oil

1шт.

8

J929011

GASKET,1.19mm Thk

Cooler Cover, Oil

1шт.

9

J901798

SEALING WASHER

1шт.

10

J931059

GASKET

Mounting, Fuel Transfer Pump

1шт.

11

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING Flywheel Housing To Block

1шт.

12

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

13

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

Sealing, Sleeve

6шт.

14

J913994

O-RING

Sealing

1шт.

15

J916284

O-RING

fuel injection pump

1шт.

16

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

Ring - Quad, Fuel Injection Pump

1шт.
