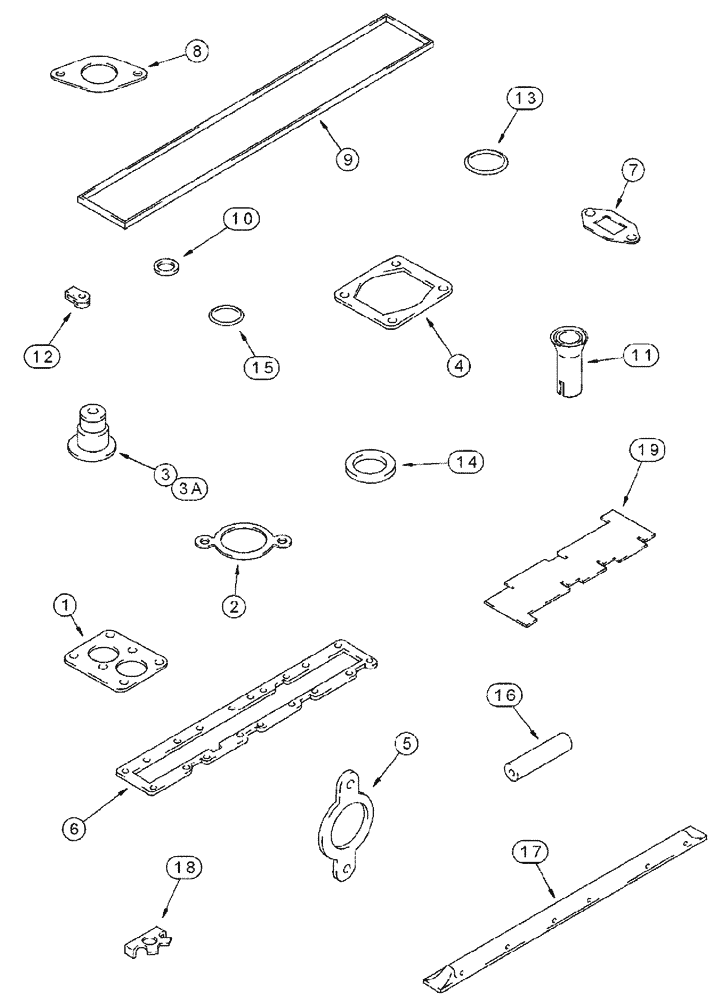

Запчасти Case IH SPX4260 (03-022) - VALVE GRIND GASKET KIT (01) - ENGINE

0

A78042

KIT

Valve Grind

1шт.

When The Valve Grind Gasket Kit Is Used, Also Order The Required Cylinder Head Gasket, See Fig. 03-013

1шт.

1

J914310

GASKET,0.8mm Thk

Thermostat Housing

1шт.

2

J918779

GASKET,1.19mm Thk

water outlet connection

1шт.

3

J915707

SEAL

Intake And Exhaust Valve Stem And Guide

6шт.

3a

J927642

SEAL

Exhaust Valve Stem And Guide

6шт.

4

J911941

GASKET

Mounting, Turbocharger

1шт.

5

J929012

GASKET,0.5mm Thk

Exhaust Manifold, 0.54 MM Thick, Set Of 6

1шт.

6

J914311

MANIFOLD GASKET

Intake Manifold Cover

1шт.

7

J937706

GASKET,0.79mm Thk

Turbo Oil Drain Tube

1шт.

8

J819378

GASKET

Turbo Oil Drain

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

Valve Cover

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Cover Bolt

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

Sleeve - Injector

6шт.

12

J903380

SEAL

Banjo connector

7шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

14

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

Seal - Injector Nozzle, 2.5 MM Thick, 7 MM Injector Tip

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

16

J930827

HOSE,51.00 mm

Breather Tube To Connector

1шт.

17

J919677

TUBE

Rocker Arm

1шт.

18

J914708

LOCKING PLATE

Exhaust Manifold Bolt

12шт.

19

J823921

GAUGE

Cylinder Head, Bolt Length

1шт.
