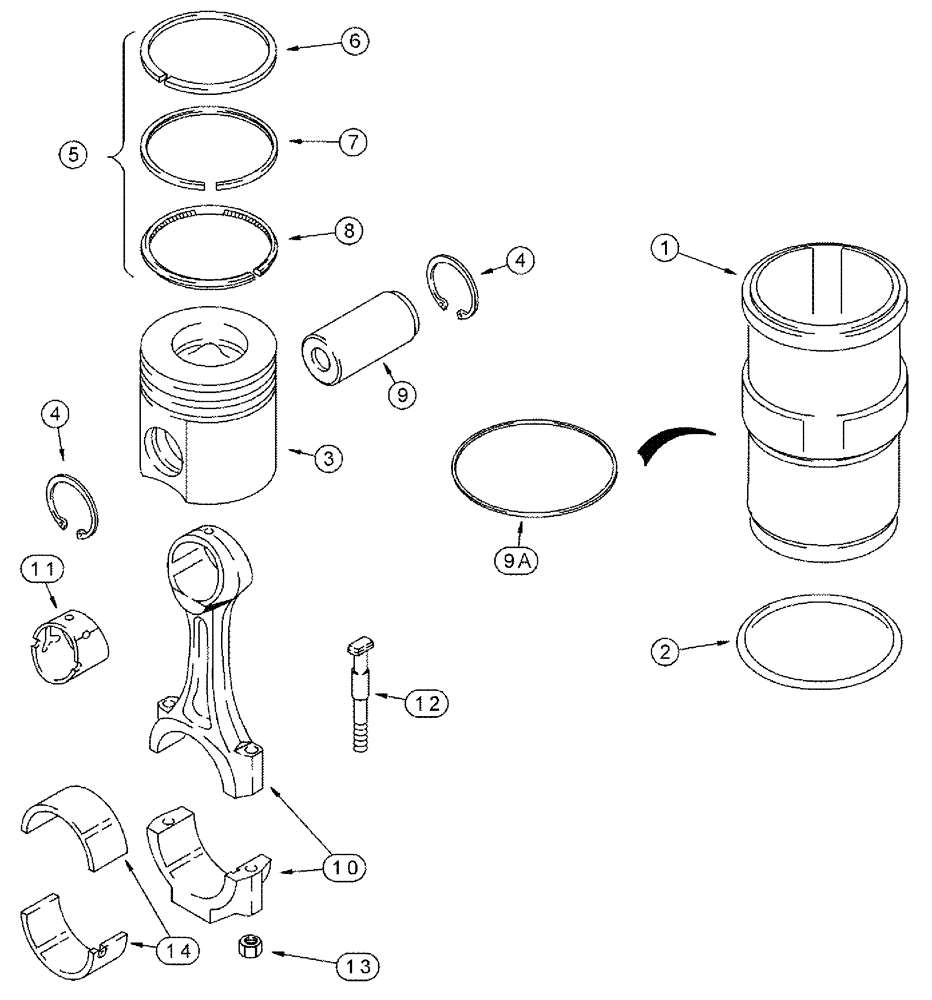

Запчасти Case IH SPX4260 (03-021) - PISTON AND CONNECTING ROD (01) - ENGINE

0

AA77912

KIT

Piston And Sleeve, Engine

6шт.

1

J919937

SLEEVE CYLINDER,114.02mm ID x 130.66mm OD x 237.12mm L

Sleeve - Piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

Cylinder Sleeve

1шт.

2a

A77853

PISTON & RINGS KIT

Engine, Standard

1шт.

3

NSS

NOT SOLD SEPARAT

Piston - Engine

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

2шт.

5

J802429

PISTON RINGS KIT

1шт.

6

NSS

NOT SOLD SEPARAT

Ring - Compression, Top

1шт.

7

NSS

NOT SOLD SEPARAT

Ring - Keystone With Reverse Twist, Comp., Middle

1шт.

8

NSS

NOT SOLD SEPARAT

Ring - Oil, Bottom

1шт.

9

J934046

PISTON PIN,45mm OD x 91mm L

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

1шт.

Use As Required For Cylinder Sleeve Propulsion Adjustment On Remanufactured Blocks Only.

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

1шт.

Use As Required For Cylinder Sleeve Propulsion Adjustment On Remanufactured Blocks Only.

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

1шт.

Use As Required For Cylinder Sleeve Propulsion Adjustment On Remanufactured Blocks Only.

1шт.

9a

J924448

SHIM,0.762mm Thk

1шт.

Use As Required For Cylinder Sleeve Propulsion Adjustment On Remanufactured Blocks Only.

1шт.

9a

J924449

SHIM,1.000mm Thk

1шт.

Use As Required For Cylinder Sleeve Propulsion Adjustment On Remanufactured Blocks Only.

1шт.

9b

JR901383

REMAN-CONNECTING ROD

Assembly, Remanufactured, North AmerIca Only, Component Parts Shown On This Fig. Do Not Apply To The Remanufactured Assembly, Rod

6шт.

9c

JC901383

CORE-ROD CONNECTING

CORE-CONNECTING ROD Return Number - Use This Part Number To Return ConnectIng Rod For Credit When Using A Remanufactured Assembly, Connecting Rod

1шт.

9d

J901383

CONNECTING ROD

6шт.

84487529R

REMAN-CONNECTING ROD

SPX4260 (11/01 - 6/04), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

10

NSS

NOT SOLD SEPARAT

Rod - Connecting, Two-Piece

1шт.

11

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

Connecting Rod

1шт.

12

J928870

ROD

connecting rod

2шт.

13

J934864

NUT

Hex, Rod Bolt, Connecting Rod

2шт.

14

87443389

BEARING LINER

Kit - Upper And Lower, Standard

6шт.

14

87443529

BEARING LINER

Kit - Upper And Lower, 0.25 mm Undersize

6шт.

14

A77565

BEARING SET

Kit - Connecting Rod, 0.50 mm Undersize

6шт.

14

84156221

BEARING SET

Kit - Upper and Lower, 0.75 mm Undersize

6шт.

14

87443534

BEARING LINER

Kit - Connector Rod, 1.00 mm Undersize

6шт.
