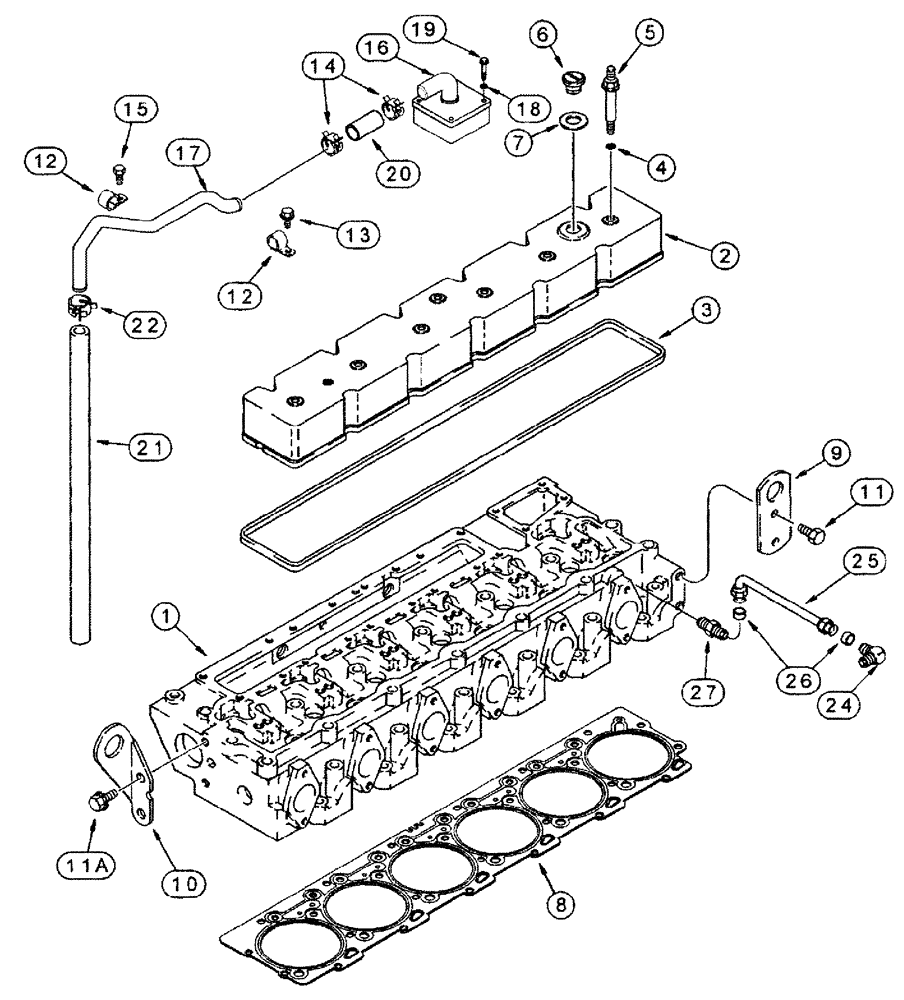

Запчасти Case IH SPX4260 (03-013) - CYLINDER HEAD COVER (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

Head - Cylinder

1шт.

See Fig. 03-015

1шт.

2

J930904

VALVE COVER

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

Valve Cover

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Cover Bolt

6шт.

5

J922639

STUD

valve cover

6шт.

Wastegate actuator mounting

1шт.

6

J902468

FILLER CAP,Male

Cap-Oil Filler

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

Ring - Cap Sealing

1шт.

8

J938267

CYLINDER HEAD GASKET,2.01mm Thk

1шт.

8

J935586

CYLINDER HEAD GASKET,1.91mm Thk

0.25 MM Thicker

1шт.

8

J935587

CYLINDER HEAD GASKET,2.38mm Thk

0.50 MM Thicker

1шт.

9

J907861

LIFTING EYE

Bracket, Front

1шт.

10

J906440

LIFTING EYE

Bracket, Rear

1шт.

11

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

11a

86624962

BOLT,Hex, M12 x 25mm, Cl 10.9, Full Thd

2шт.

12

515-25259

CLIP

2шт.

13

J912072

SELF-TAP SCREW

Self Tapping Metal

1шт.

14

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

2шт.

15

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

16

J928772

BREATHER

Crank

1шт.

17

J929739

TUBE,1" OD

Breather

1шт.

18

J930247

WASHER

4шт.

19

J930248

SELF-TAP SCREW,M5 x 0.8 x 45mm

4шт.

20

J930828

HOSE

Plain

1шт.

21

J283564

HOSE

Plain

1шт.

22

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

1шт.

24

87026320

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

1шт.

25

J924589

TUBE,6.35 mm OD x 112.6 mm L

Vent, Air

1шт.

26

87017025

SLEEVE,5.33mm ID x 10.72mm OD x 5.41mm L

2шт.

27

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

1шт.
