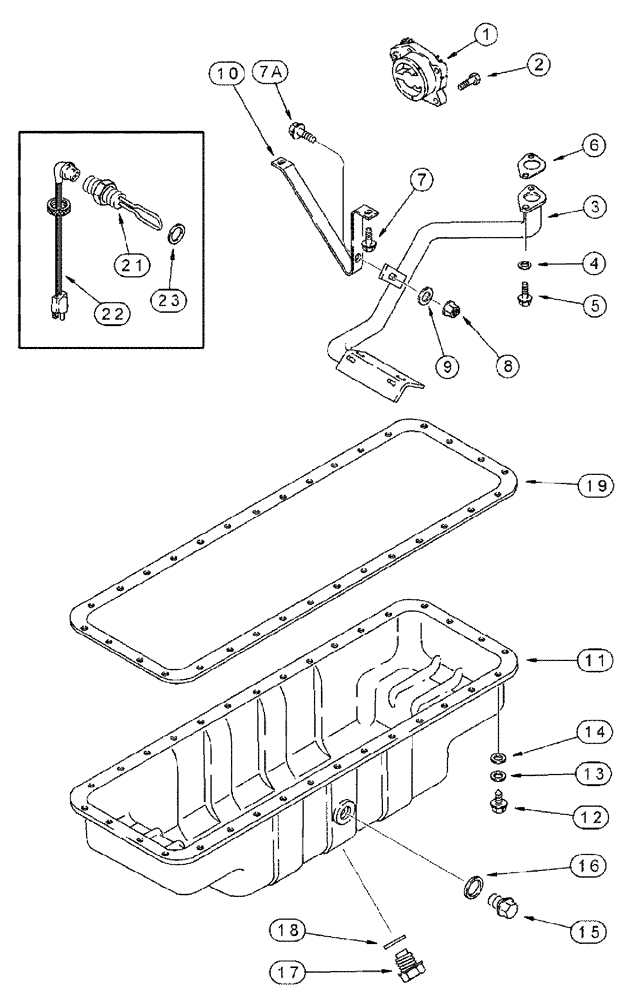

Запчасти Case IH SPX4260 (03-012) - OIL PUMP, PAN AND HEATER (01) - ENGINE

1

J948071

PUMP,24.17 CC

Oil, 24 Teeth Drive Gear

1шт.

1

JR948071

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Assembly, Remanufactured, North America Only, 24 Teeth Drive Gear

1шт.

1

JC948071

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return Number - For N.A. only

1шт.

2

J900677

BOLT,Hex

Full Threads, 8 - 1.25 X 30 MM

4шт.

3

J921719

TUBE

Tube- With Screen, Oil Suction

1шт.

4

J926865

SPACER,6.9mm ID x 12.7mm OD x 14mm L

Mounting

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

6

J914302

GASKET

Mounting, Oil Suction Tube

1шт.

7

87015915

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd

2шт.

7a

87015862

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

8

J906216

FLANGE NUT

Hex Flange, Special, 6 MM - 1.0

1шт.

9

J910960

WASHER

Flat, Special

1шт.

10

J927611

BRACKET

Brace - Suction Tube

1шт.

11

J914015

ENGINE OIL PAN

Oil, Engine

1шт.

12

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

32шт.

13

J910266

LOCK WASHER

Spring, Belleville

32шт.

14

J908316

WASHER

Flat, Special, 9 X 16 X 1 MM

32шт.

15

J924148

PLUG,M22 x 1.5

Hex Magnetic, Special, 22 MM - 1.5, Heater Hole

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Sealing, Plug

1шт.

17

J924147

PLUG,M18 x 1.5

Hex Magnetic, Special, 12 MM - 1.5, Drain

1шт.

18

J920773

SEALING WASHER

Sealing, Drain Plug

1шт.

19

NSS

NOT SOLD SEPARAT

Gasket - Oil Pan

1шт.

Order A77999 Gasket Kit Shown Below

1шт.

20

87308050

GASKET,0.95mm Thk

Oil Pan

1шт.

Includes All Refs. Shown With Two Astersticks

1шт.

20a

A77580

SERVICE KIT

Oil Pan Heater, Engine Oil

1шт.

21

NSS

NOT SOLD SEPARAT

Element - Heater, 12 Volt

1шт.

22

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72") (Engine Block Heater, 120 Volt)

1шт.

23

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Sealing, Plug

1шт.

When Engine Oil Heater Kit is Ordered, J902425 Washer Must Be Ordered.

1шт.
