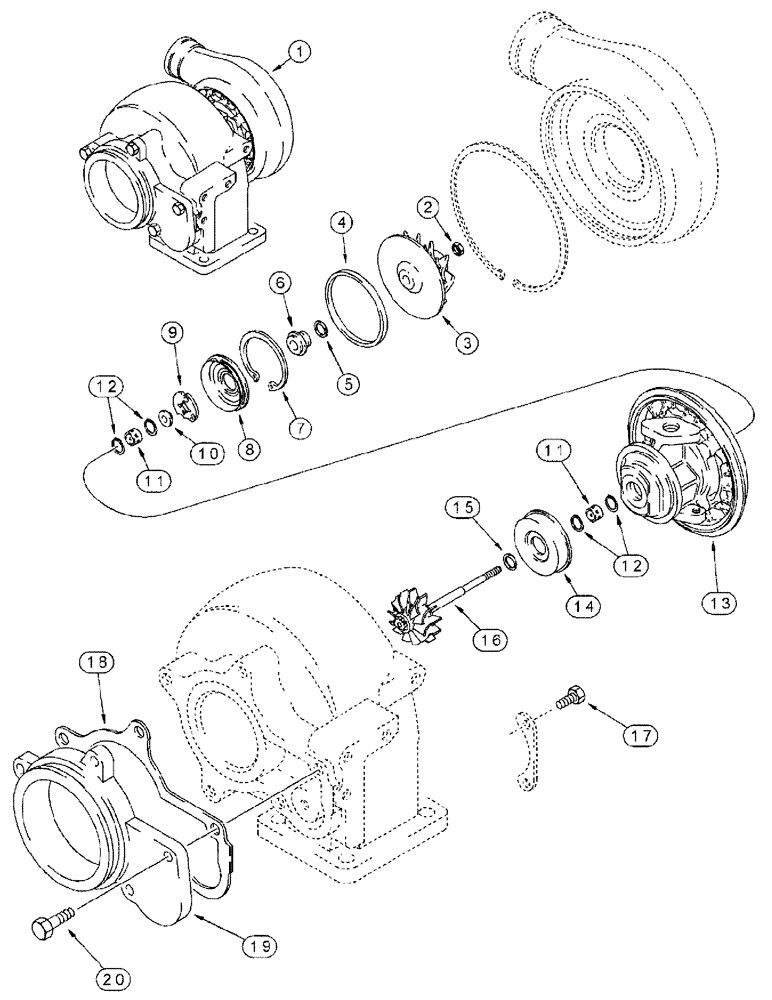

Запчасти Case IH SPX4260 (03-009) - TURBOCHARGER ASSEMBLY (01) - ENGINE

1

J802826

TURBOCHARGER

Engine, New

1шт.

1

JR802826

REMAN-TURBOCHARGER

Turbocharger Assembly- Engine, Remanufactured, Component Parts Shown On This Page Do Not Apply To The Remanufactured Assembly

1шт.

1

JC535787

CORE-TURBOCHARGER

Return Part Number Use This Part Number To Return Turbo-Charger Core For Credit When Using A Remanufactured Assembly

1шт.

2

NSS

NOT SOLD SEPARAT

Nut-Lock

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller - Turbocharger

1шт.

4

NSS

NOT SOLD SEPARAT

Seal - O-Ring

1шт.

5

NSS

NOT SOLD SEPARAT

Seal - Split Ring

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger-Oil

1шт.

7

NSS

NOT SOLD SEPARAT

Ring - Retaining

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle - Oil

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing - Turbocharger Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

Collar - Thrust

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing - Turbocharger

2шт.

12

NSS

NOT SOLD SEPARAT

Ring - Retaining

4шт.

13

NSS

NOT SOLD SEPARAT

Housing - Bearing Turbine

1шт.

14

NSS

NOT SOLD SEPARAT

Shield-Turbine Heat

1шт.

15

NSS

NOT SOLD SEPARAT

Seal - Split Ring

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor And Shaft - Turbocharger

1шт.

17

NSS

NOT SOLD SEPARAT

Screw- Set, Hex Head

6шт.

18

J535243

GASKET,0.25mm Thk

Adapter

1шт.

19

J528010

ADAPTER

1шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

20a

J535324

CARTRIDGE

Center, Assembly - Turbo

1шт.

Includes Refs. 2 - 16

1шт.

20b

J575169

REPAIR KIT

Overhaul, Turbocharger

1шт.

Includes All Refs. Shown With Two Asterisks

1шт.
