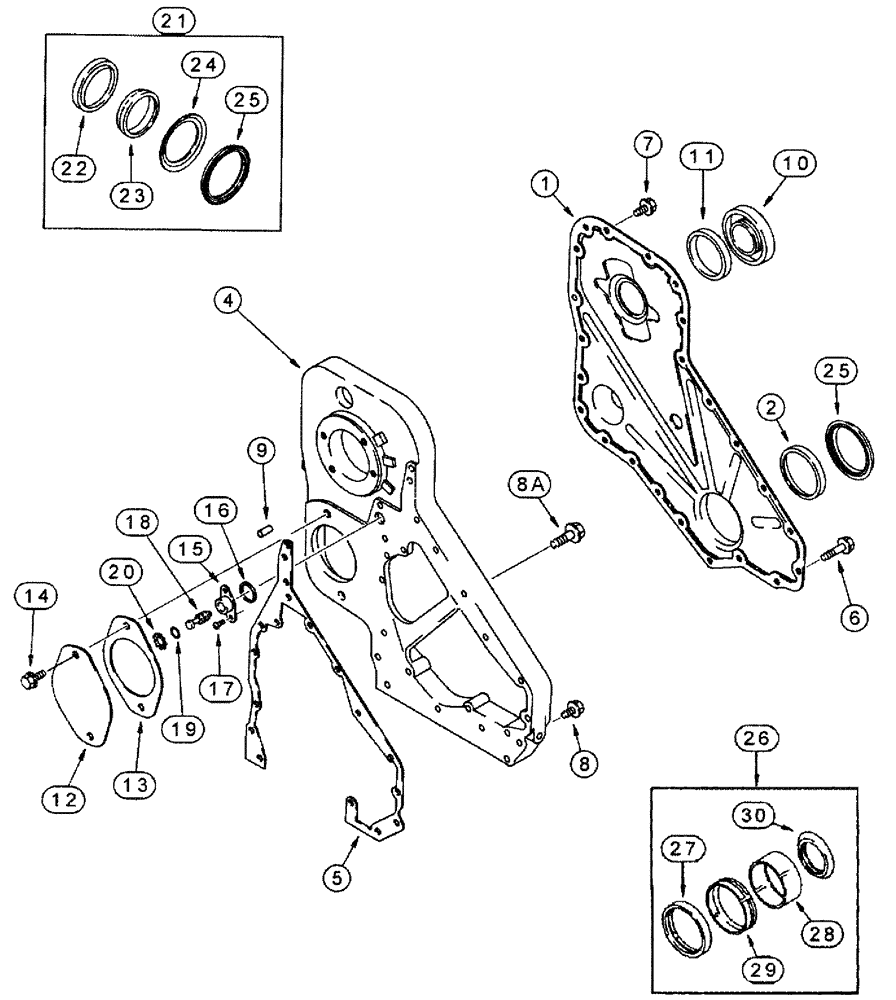

Запчасти Case IH SPX4260 (03-005) - FRONT GEAR COVER (01) - ENGINE

1

J925230

COVER ASSY

Gear, Front, High Pto

1шт.

2

NSS

NOT SOLD SEPARAT

Seal - Oil, Crankshaft Front, Order Item 23, A77790 And A77808 Kit Below

1шт.

3

J823494

SEALANT

Three Bond Silver Rtv Adhesive/Sealer, 3 Oz Tube, Use Between Housing And Cover

1шт.

4

J926518

HOUSING

High Mount

1шт.

5

J929253

GASKET

Housing, Gear

1шт.

6

J926863

FLANGE BOLT

Hex Flange, 8 - 1.25 X 50 MM, Class 10.9

6шт.

7

J924962

FLANGE BOLT

Hex Flange, Special, 8 - 1.25 X 16 MM

16шт.

8

J926846

FLANGE BOLT

Hex Flange, 8 - 1.25 X 20 MM, Class 10.9

5шт.

8a

86642458

BOLT,Hex, M12 x 50mm, Cl 10.9

4шт.

9

J900257

PIN,10.01mm OD x 16mm L

10 mm x 16 mm long

2шт.

10

J903463

PLUG,M63 x 5

front access

1шт.

11

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

Front Access Cover

1шт.

12

J914868

COVER

plate, access, flat

1шт.

13

J931608

GASKET

Access Cover Plate

1шт.

14

86624962

BOLT,Hex, M12 x 25mm, Cl 10.9, Full Thd

2шт.

15

J919683

HOUSING

Timing Pin

1шт.

16

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, Timing Pin Housing

1шт.

17

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

18

J903924

PIN,18.87mm OD x 55mm L

Timing

1шт.

19

J913994

O-RING

Sealing

1шт.

20

100-2587

SNAP RING,0.875", Int, #87

1шт.

21

A77790

SEAL KIT

Oil, Crankshaft Front

1шт.

22

NSS

NOT SOLD SEPARAT

Seal - Oil, Front

1шт.

23

NSS

NOT SOLD SEPARAT

Tool - Installation

1шт.

24

NSS

NOT SOLD SEPARAT

Tool - Installation

1шт.

25

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

Dust

1шт.

26

A77808

SERVICE KIT

Wear Sleeve, Crankshaft Front

1шт.

27

NSS

NOT SOLD SEPARAT

Sleeve - Wear

1шт.

28

NSS

NOT SOLD SEPARAT

Tool - Installation

1шт.

29

NSS

NOT SOLD SEPARAT

Seal - Oil, Front

1шт.

30

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

Dust

1шт.
