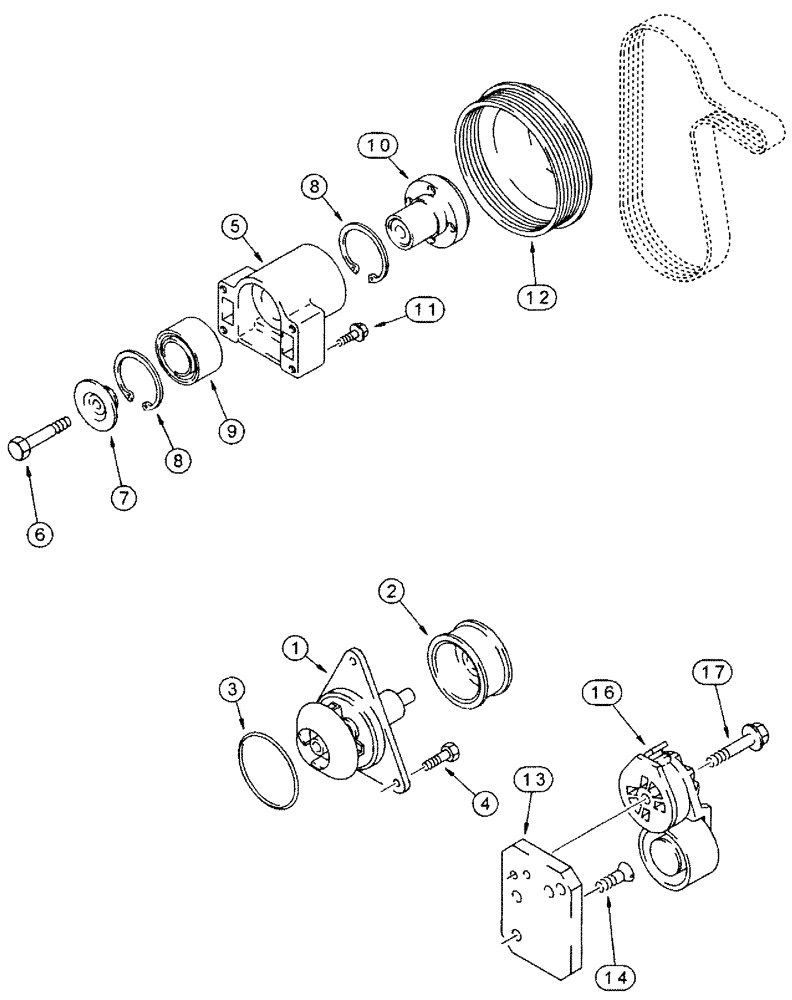

Запчасти Case IH SPX4260 (03-004) - WATER PUMP SYSTEM (01) - ENGINE

0

J800976

WATER PUMP

Kit

1шт.

J800976R

REMAN-WATER PUMP

SPX4260 (11/01-6/04)

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump - Water, New

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley - Water Pump

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-Ring

1шт.

4

J934054

FLANGE BOLT

Hex, Special, 8 - 1.25 X 28 MM

3шт.

5

J929458

SUPPORT

Assembly - Fan

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

hex, special, M10 x 70 mm, class 12.9

1шт.

7

J923044

RETAINER

Fan Hub

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

Fan

1шт.

11

87015867

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

4шт.

12

J914461

PULLEY

fan, 207 mm diameter, 0.87 to 1 ratio

1шт.

13

J919472

SUPPORT

Bracket - Belt Tensioner

1шт.

14

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

2шт.

16

J936203

BELT TENSIONER

1шт.

17

J928848

FLANGE BOLT,Hex, M10 x 1.5 x 70mm

Bolt - Heavy Hex Flange, 10 - 1.5 X 70 MM, Class 10.9

1шт.
