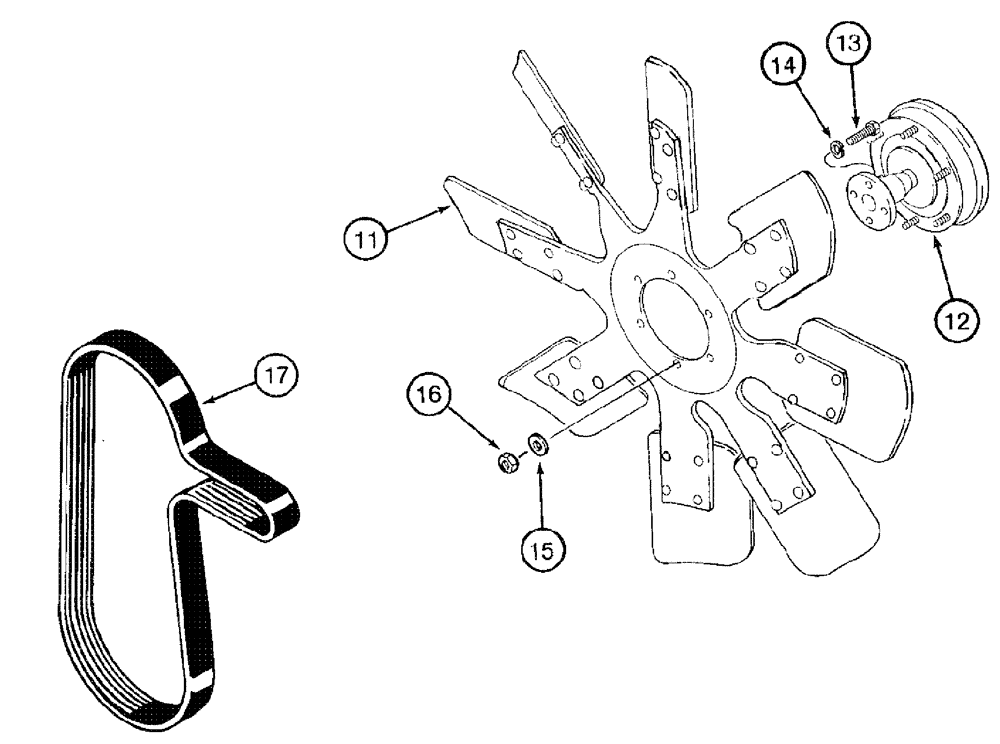

Запчасти Case IH SPX4260 (03-003) - RADIATOR FAN AND MOUNTING PARTS (01) - ENGINE

11

BN310551

PACKAGE

Fan - Engine

1шт.

See Fig. 03-033

1шт.

12

229596A2

DRIVE,Cooling Fan Viscous

Fan

1шт.

13

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

14

892-11010

LOCK WASHER,M10

4шт.

15

87016603

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

6шт.

16

825-1408

NUT,M8, Cl 8

6шт.

17

J911567

BELT,27.92mm W x 1701.8mm L, 8 Ribs

Fan

1шт.
