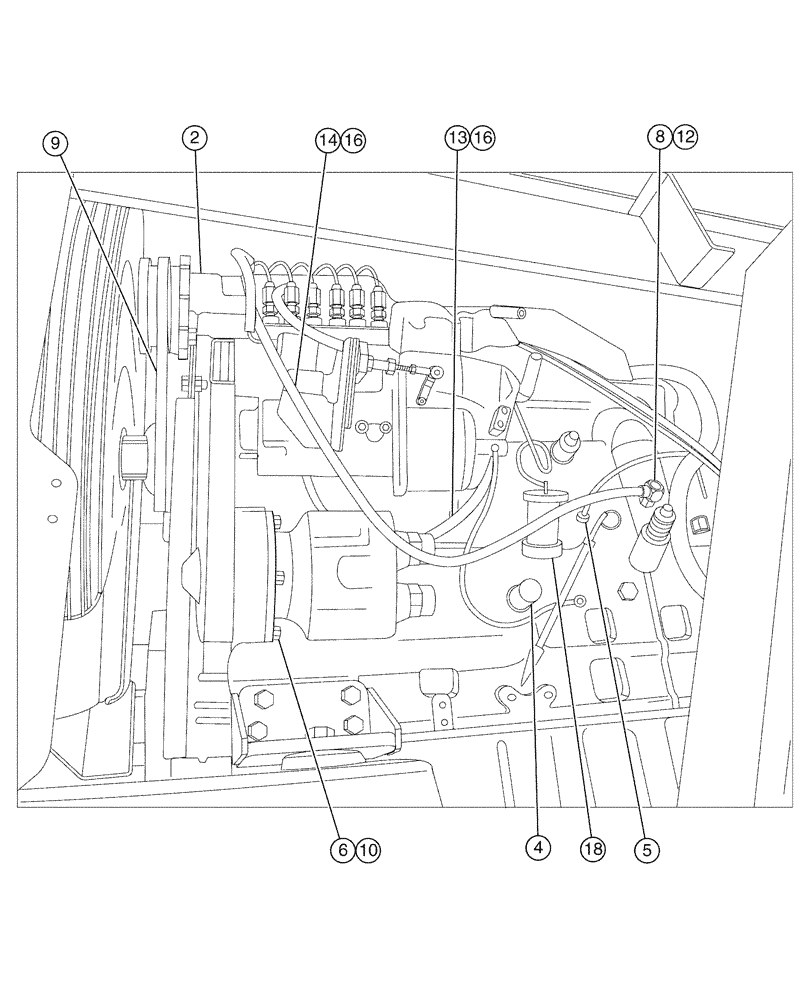

Запчасти Case IH SPX4260 (03-002[02]) - ENGINE GROUP (01) - ENGINE

1

321944A4

ENGINE

CDC, 260 HP, Complete

1шт.

2

BN317983

Air Comp

1шт.

See Fig. 03-039

1шт.

3

BN310567

PACKAGE

Starter-Alt

1шт.

3a

193432A1

STARTING MOTOR

1шт.

3b

125849A1

ALTERNATOR,12V, 135A, W/ Pulley

135 amp

1шт.

3b

125849A1R

REMAN-ALTERNATOR

1шт.

3b

125849A1C

CORE-ALTERNATOR

Return Number

1шт.

3b

125849A1GV

ALTERNATOR

Value, 135 Amp

1шт.

4

BN326346

SENDER UNIT

SENDER Pressure 1/8-27Nptf

1шт.

778B Only

1шт.

5

A176566

TRANSMITTER

Sender, Temp. 1/2-14Nptf

1шт.

6

BN310636

STUD

M12-1.75 X 90 8.8

2шт.

7

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

2шт.

8

BN310569

ELBOW

Hosebarb 1/2MPT x 3/8 X 90 Degree

1шт.

9

J911580

V-BELT,27.92mm W x 1739.90mm L, 8 Ribs

1шт.

10

BN304420

NUT

M12-1.75, NLN, 10.9

2шт.

11

NSS

NOT SOLD SEPARAT

Filter-Oil

1шт.

See Fig. 03-011

1шт.

12

NSS

NOT SOLD SEPARAT

Kit-Fuel Filter

1шт.

See Fig. 03-027

1шт.

13

BN313746

FUEL HOSE,0.375" ID x 60.0"

1шт.

14

BN314883

FUEL HOSE,0.375" ID x 70.0"

1шт.

16

BN76094

HOSE CLAMP

SS #M4

4шт.

16a

NSS

NOT SOLD SEPARAT

Oil Drain Kit

1шт.

See Fig. 03-040

1шт.

Not Shown - Under Oil Pan

1шт.

18

1964960C1

PRESSURE SWITCH

oil

1шт.

778B Only

1шт.

18a

343947A1

HARNESS

CDC260 Engine

1шт.
