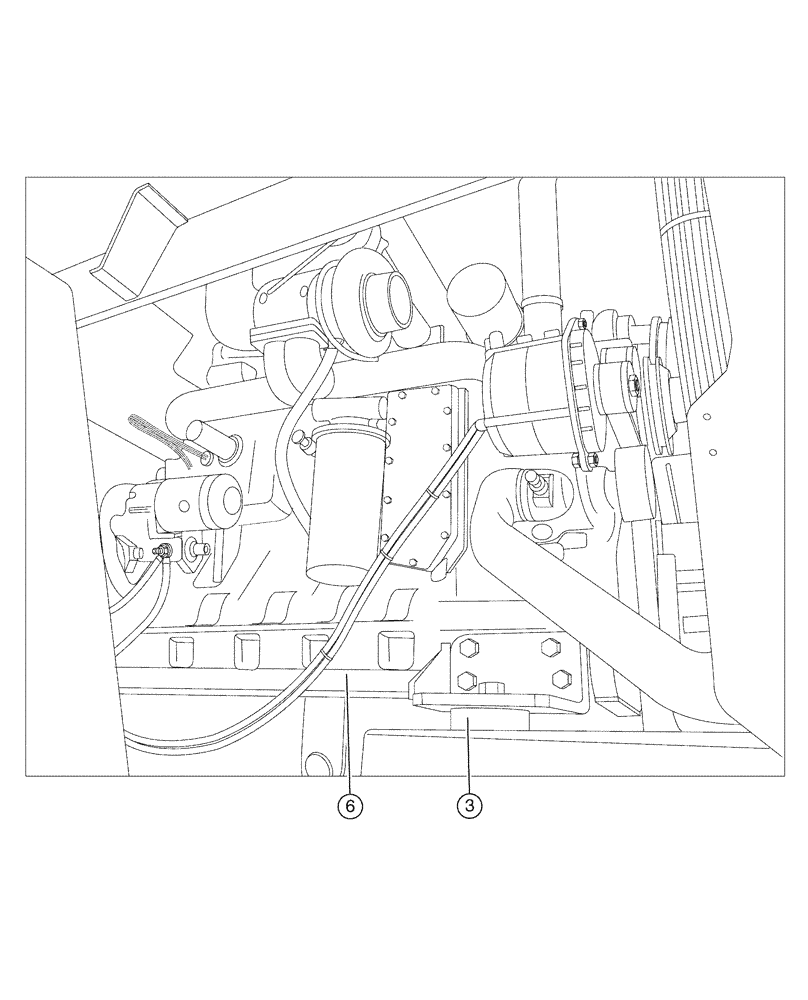

Запчасти Case IH SPX4260 (03-001[02]) - ENGINE PACKAGE (01) - ENGINE

0

BN310549

PACKAGE

Group, Intake-Exhaust

1шт.

See Fig. 03-034

1шт.

3

BN310550

PACKAGE

Group, Mounting Engine

1шт.

See Fig. 03-031

1шт.

4

BN310551

PACKAGE

Group, Radiator/Fan

1шт.

See Fig. 03-033

1шт.

6

BN310551

PACKAGE

Group, Engine 8.3Liter Cdc

1шт.

See Fig. 03-002

1шт.

7

J918986

CRANKSHAFT

Group, Engine Control

1шт.

See Fig. 03-018

1шт.

8

BN311331

PUMP

Drive-2, 1.38 Up (Gearbox), See Fig 06-030

1шт.

8a

BN317527

ADAPTER

Drive Plate

1шт.

Service Parts For Ref. 8

1шт.

8b

BN314738

SHAFT SEAL

1шт.

Service Parts For Ref. 8

1шт.

8c

BN314740

VENT

1шт.

Service Parts For Ref. 8

1шт.

8d

BN314741

O-RING

Pump

2шт.

Service Parts For Ref. 8

1шт.

8e

BN314742

ADAPTER

Spline

2шт.

Service Parts For Ref. 8

1шт.

8f

BN314941

DIPSTICK

Gear Increaser

1шт.

Service Parts For Ref. 8

1шт.

8g

BN325356

SHAFT

Input Spline

1шт.

Service Parts For Ref. 8

1шт.
