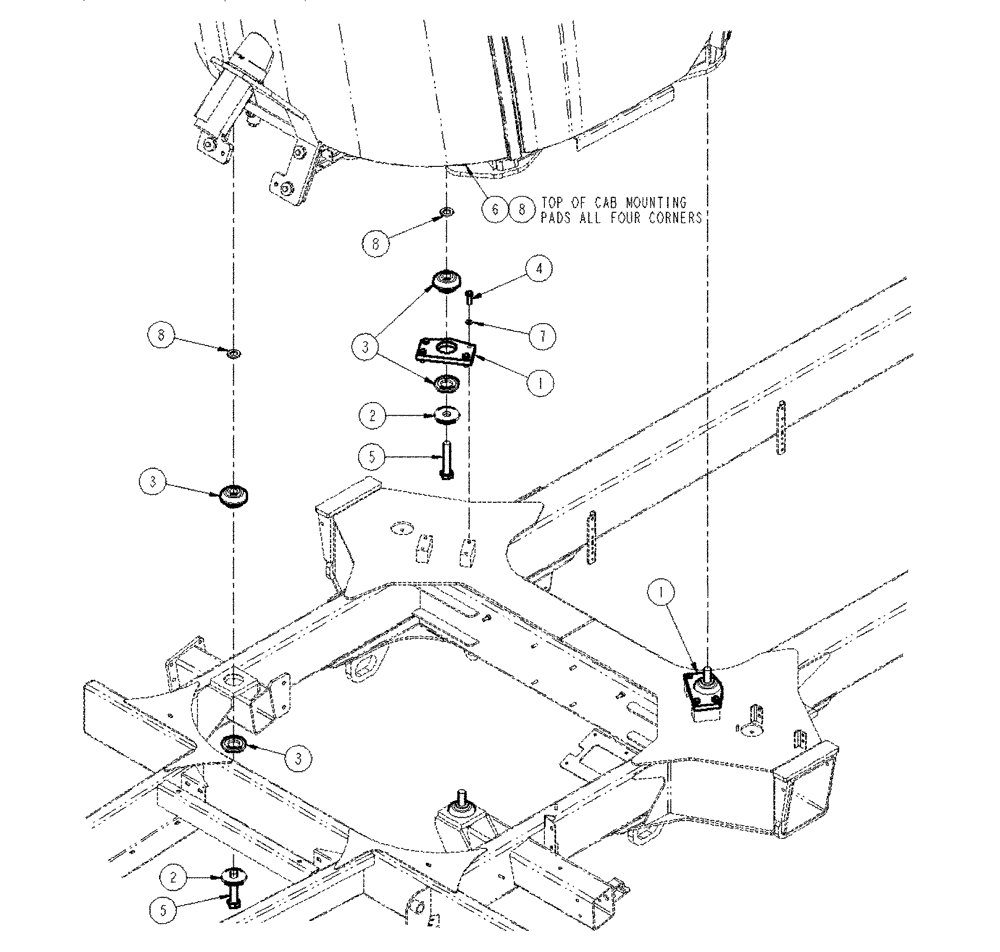

Запчасти Case IH SPX4260 (04-050) - CAB MOUNTING GROUP Suspension & Frame

1

BN323368

BRACKET

Mount

2шт.

2

371043A1

WASHER

Snubber, Steel

4шт.

3

377678A1

RUBBER MOUNTING

cab isolator

4шт.

4

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

8шт.

5

86639185

BOLT,Hex, M24 x 3 x 120mm, Class 10.9

4шт.

6

832-46424

NUT,M24 x 3, Cl 8

4шт.

7

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

8

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

8шт.
