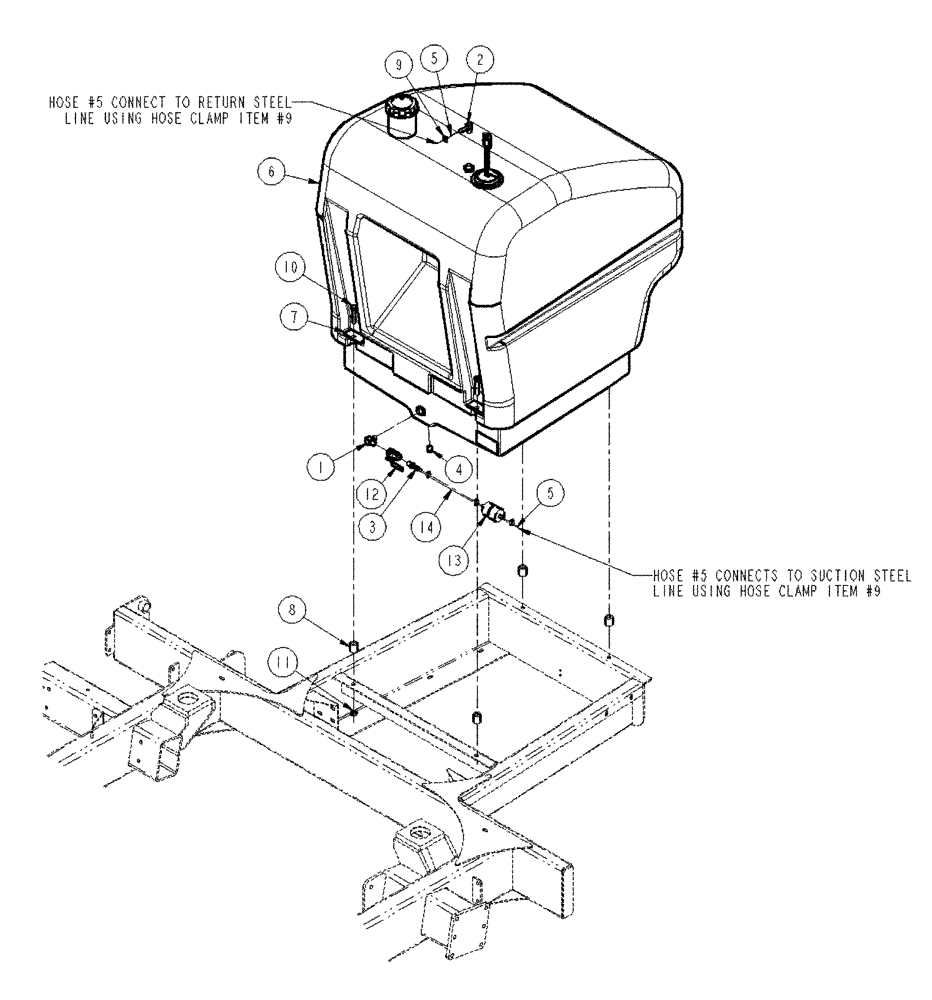

Запчасти Case IH SPX4260 (04-043) - TANK, FUEL, MOUNTING & FITTINGS Suspension & Frame

1

217-1225

ELBOW,90 Degree, 1/4"-18 Male

1шт.

2

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

3

87017579

FITTING,3/8" Hose X 1/4" NPTF Beaded

1шт.

4

217-406

PLUG,Hex Hd, 1/4" - 18 NPT

1шт.

5

BN313749

FUEL HOSE,9.53 mm ID x 2667.00 mm, SAE 30R6, SAE 30R7

fuel 3/8" X 105"

2шт.

6

BN319922

TANK

Fittings

1шт.

See Fig. 04-044

1шт.

7

BN67652

PLATE

Tank Hold Down

4шт.

8

BN67653

BUSHING

TB, RD, Bushing

4шт.

9

BN76094

HOSE CLAMP

SS #M4

6шт.

10

9706693

BOLT,M12 x 60mm, Cl 8.8

4шт.

11

100038

NUT,M12 x 1.75, Cl 8

4шт.

12

BN94071

VALVE

Bronze Ball 1/4NPT

1шт.

13

D139225

FILTER, FUEL

3/8" Barbs

1шт.

14

BN317990

FUEL HOSE,0.375" ID x 3.00", SAE 30R6, SAE 30R7

1шт.
