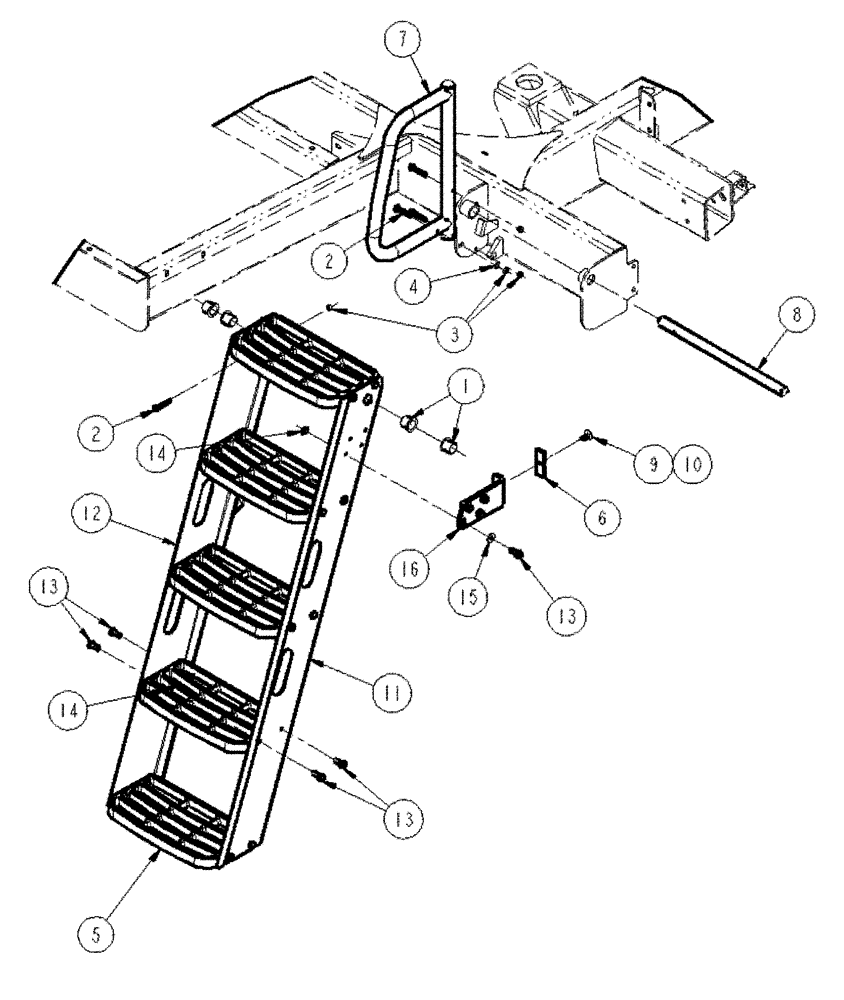

Запчасти Case IH SPX4260 (04-042) - LADDER RAIL GROUP, FRONT Suspension & Frame

1

BN321159

BUSHING,25.44mm ID x 27.77mm OD x 26.54mm L

4шт.

2

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

3

86528579

NUT,M8 x 1.25

4шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

5

257375A1

STEP

cast alum tractor lower

5шт.

6

BN320307

PAD

Ladder Stop, Pad

1шт.

7

BN320316

HANDRAIL

Ladder, Handrail

1шт.

8

BN320322

PIN,25.4mm OD x 444mm L

Ladder Pivot

1шт.

9

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

1шт.

10

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

1шт.

11

BN323438

SUPPORT

Ladder

1шт.

12

BN322740

BRACKET, SUPPORTING

Ladder Steps

1шт.

13

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

20шт.

14

100037

LOCK NUT,M10 x 1.5, Cl 8

20шт.

15

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

4шт.

16

BN323392

STOP

1шт.
