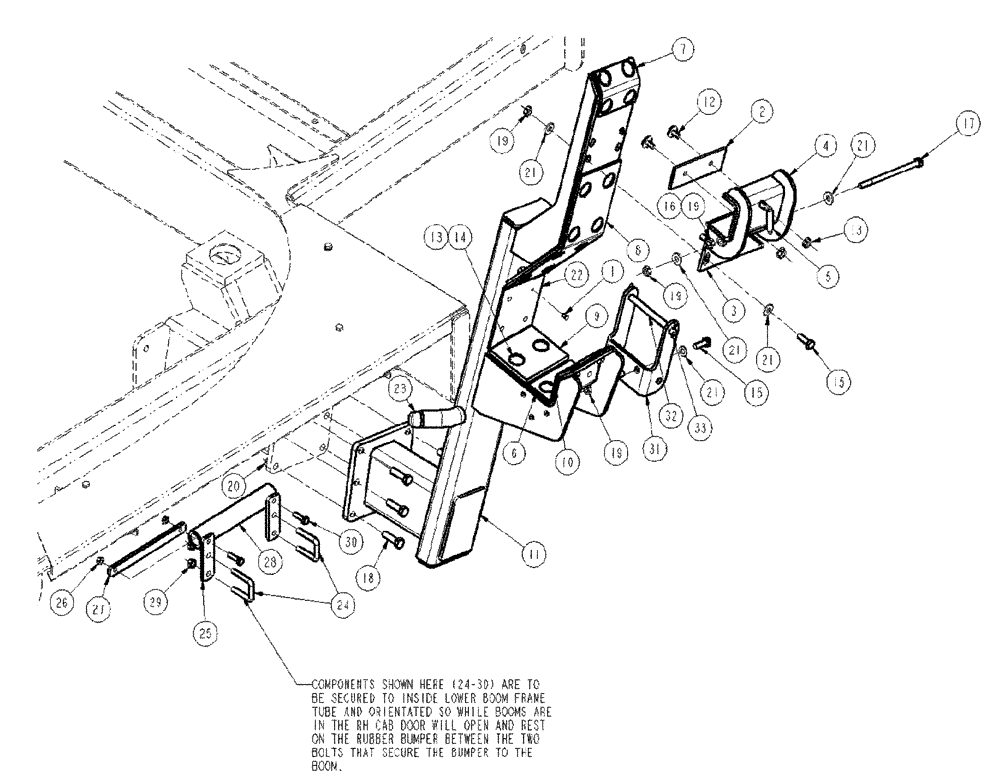

Запчасти Case IH SPX4260 (04-041) - CRADLE GROUP, RH Suspension & Frame

0

BN322753

Cradle Group, RH

1шт.

1

151-513

RIVET,Pop, 3/16" x .700"

4шт.

2

BN311805

PLATE

Liner, Cradle Lock

1шт.

3

BN311847

CLAMP

Cradle Hinge

1шт.

4

86986801

CRADLE

Top Boom

1шт.

5

BN313580

SPRING

Cradle Lock

1шт.

6

BN319335

PAD

Boom

1шт.

7

BN320594

PAD

Boom, Outer

1шт.

8

BN323472

PAD

Boom

1шт.

9

BN320995

PAD

Boom, Bottom

1шт.

10

BN322055

PAD

Boom, Bottom

1шт.

11

342590A1

CRADLE

RH boom

1шт.

12

BN50014

BOLT

5/16"-18 x .75, EH

20шт.

13

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

22шт.

14

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

2шт.

15

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

7шт.

16

86624000

BOLT,M10 x 1.5 x 156.58mm, Cl 8.8

1шт.

17

326100

BOLT,Hex, M10 x 1.5 x 170mm, Cl 8.8

1шт.

18

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

6шт.

19

100037

LOCK NUT,M10 x 1.5, Cl 8

9шт.

20

100038

NUT,M12 x 1.75, Cl 8

6шт.

21

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

10шт.

22

BN323473

PAD

Boom Rest

1шт.

23

363226A1

BUMPER

door

1шт.

24

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

2шт.

25

BN323951

BRACKET

Door

2шт.

26

86528579

NUT,M8 x 1.25

2шт.

27

BN324535

RETAINER

Door

1шт.

28

BN324536

BUMPER

Door

1шт.

29

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

30

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

31

342585A1

PLATE

Boom Lock

1шт.

32

342586A1

PIN,12.7mm OD x 154mm L

Boom Lock

1шт.

33

BN71006

COTTER PIN

1/8", #11

2шт.
