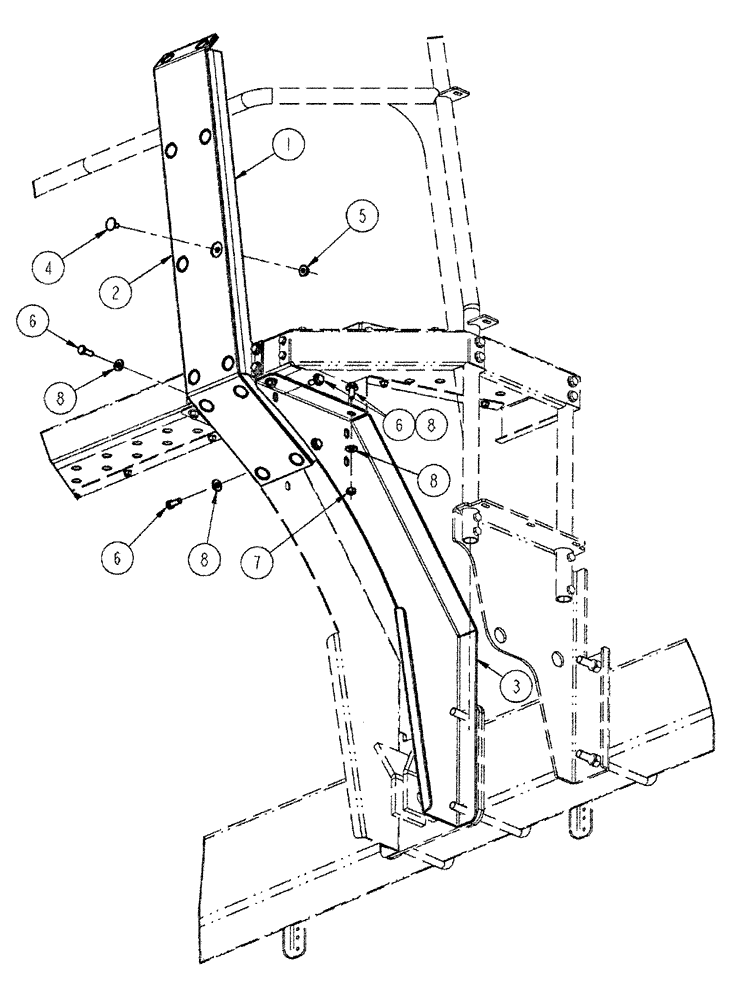

Запчасти Case IH SPX4260 (04-040) - GUIDE, LH BOOM Suspension & Frame

1

BN312158

GUIDE

LH

1шт.

2

BN313030

GUIDE

Liner Boom

1шт.

3

BN323780

BRACKET, SUPPORTING

Walkway

1шт.

4

BN50014

BOLT

5/16"-18 x .75, EH

10шт.

5

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

10шт.

6

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

10шт.

7

100037

LOCK NUT,M10 x 1.5, Cl 8

10шт.

8

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

10шт.
