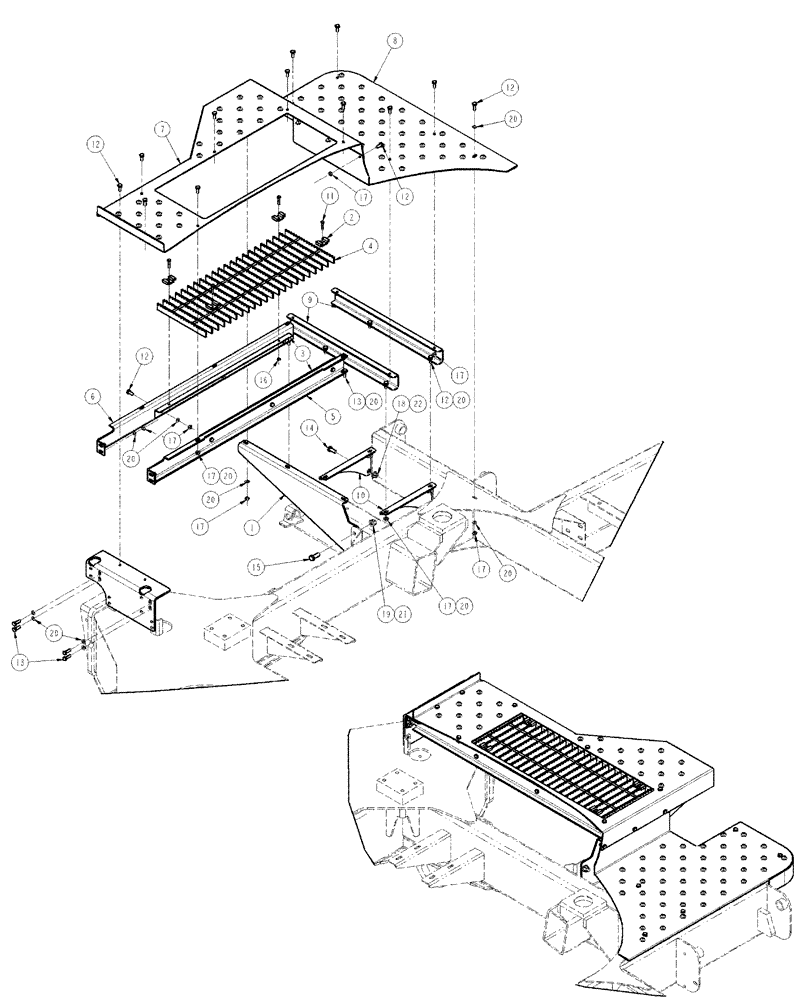

Запчасти Case IH SPX4260 (04-038) - WALKWAY GROUP, LH FRONT Suspension & Frame

1

BN318542

BRACKET

Front Walkway

1шт.

2

BN318741

CLIP

Saddle Anchor

4шт.

3

BN319124

SUPPORT

Walkway, LH

2шт.

4

BN319856

GRATE

Walkway

1шт.

5

BN322692

CHANNEL

Walkway Deck

1шт.

6

BN322719

CHANNEL

Walkway Deck

1шт.

7

BN322720

PLATE

Upper LF

1шт.

8

BN322735

PLATE

Deck, Lower LF

1шт.

9

BN322737

CHANNEL

Walkway Support

2шт.

10

BN322738

SUPPORT

Walkway

2шт.

11

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

4шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

25шт.

13

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

7шт.

14

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

4шт.

15

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

16

353308

NUT,M6 x 1.0, Cl 8

4шт.

16

353308

NUT,M6 x 1.0, Cl 8

1шт.

17

86528579

NUT,M8 x 1.25

32шт.

18

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

19

100038

NUT,M12 x 1.75, Cl 8

2шт.

20

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

35шт.

21

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

22

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

4шт.
