(04-036) - PLATFORM GROUP, EMERGENCY EXIT

Запчасти Case IH SPX4260 (04-036) - PLATFORM GROUP, EMERGENCY EXIT Suspension & Frame

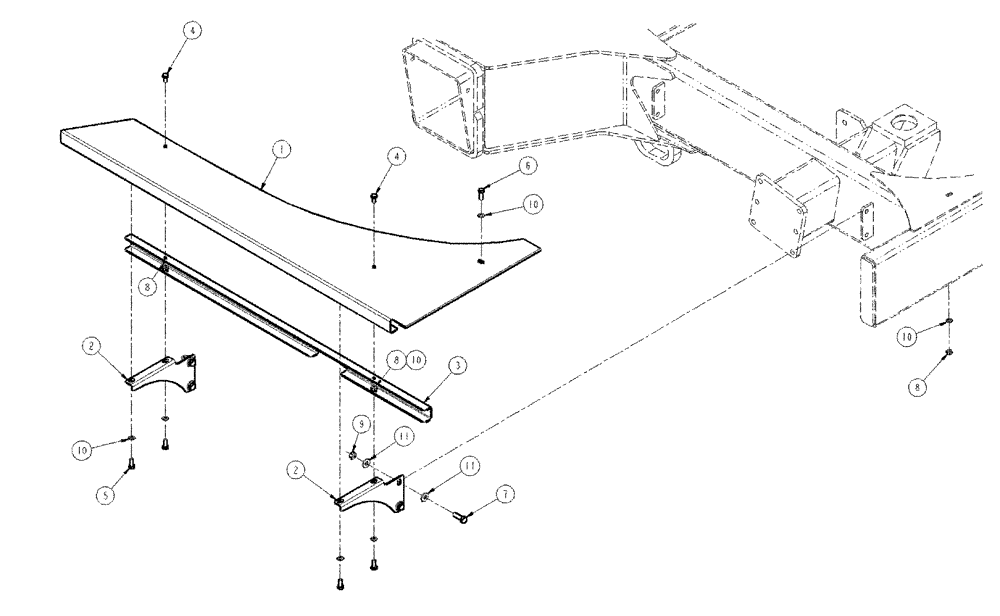

Схема запчастей Case IH SPX4260 - (04-036) - PLATFORM GROUP, EMERGENCY EXIT Suspension & Frame
6
11
3
8
10
10
4
4
10
3
2
8
7
9
8
5
10
2
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN322766

PLATFORM

Emergency Exit

1шт.

2

BN322795

BRACKET

Bracket Walkway Support

2шт.

3

BN322796

CHANNEL

Walkway Support

1шт.

4

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

7

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

8

86528579

NUT,M8 x 1.25

7шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

10

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

11

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

8шт.
