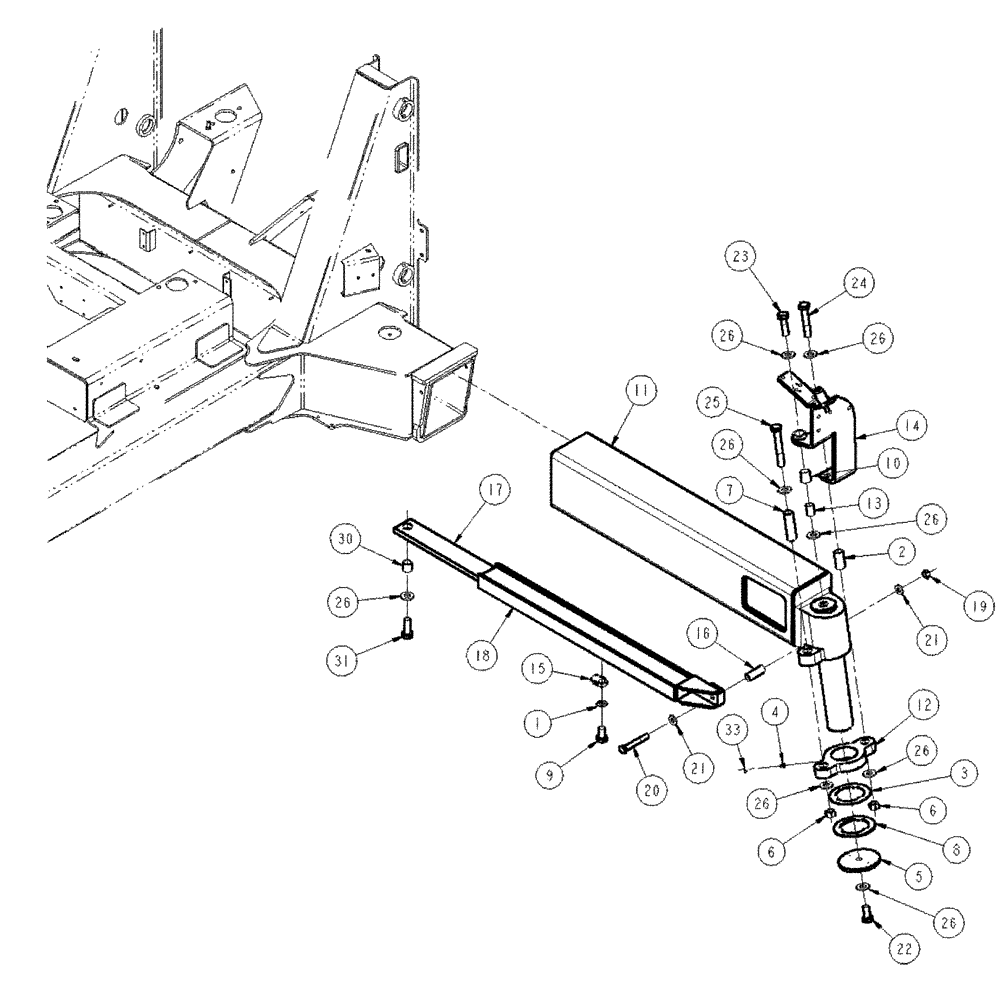

Запчасти Case IH SPX4260 (04-034) - AXLE GROUP, NON STEER, LR Suspension & Frame

1

BN300528

LOCK WASHER

M20, 10.9

1шт.

2

BN301997

DOWEL

Hollow

1шт.

3

BN322975

WASHER

Washer, Thrust

1шт.

4

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

1шт.

5

BN302052

WASHER,20.32mm ID x 139.7mm OD

1шт.

6

264031

NUT,M20 x 2.5, Cl 10

2шт.

7

BN323822

DOWEL

1.25 od x .810 id x 4.035" long

1шт.

8

BN322976

WASHER

Thrust

1шт.

9

614-20035

BOLT,Hex, M20 x 2.5 x 35mm, Cl 8.8, Full Thd

1шт.

10

BN307708

BUSHING

UHMW Hose

1шт.

11

BN322320

AXLE

LH

1шт.

12

BN312634

SPACER

Non-Steer

1шт.

13

BN313691

BUSHING

Tube

1шт.

14

BN313761

ASSEMBLY

Hose Mount, RR

1шт.

See Fig. 04-018

1шт.

15

BN320759

STOP

Axle Adjust Stop

1шт.

16

BN322495

BUSHING

Hardened

1шт.

17

87268923

BAR

Axle Slide

1шт.

18

342203A1

ARM

receiver, non-steer

1шт.

19

832-46416

NUT,M16 x 2, Cl 8

1шт.

20

43874

BOLT,Hex, M16 x 110, 8.8

1шт.

21

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

2шт.

22

86624002

BOLT,Hex, M20 x 40mm, Cl 8.8

1шт.

23

814-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 8.8

1шт.

24

86508350

BOLT,Hex, M20 x 110mm, Cl 10.9

1шт.

25

84025013

BOLT,Hex, M20 x 140mm, Cl 10.9

1шт.

26

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

8шт.

27

BN1243001

LOCTITE

243-31 Removable

1шт.

28

BN307971

SEALANT

Thread, 0.02

1шт.

29

BN55015

NIPPLE, LUBE

NIPPLE lithium, 12-grade Ref. #2

1шт.

30

BN301998

DOWEL

Hollow

1шт.

31

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

1шт.

32

BN55077

ANTISEIZE

0.05

1шт.

33

BN69951

CAP

Grease

1шт.
