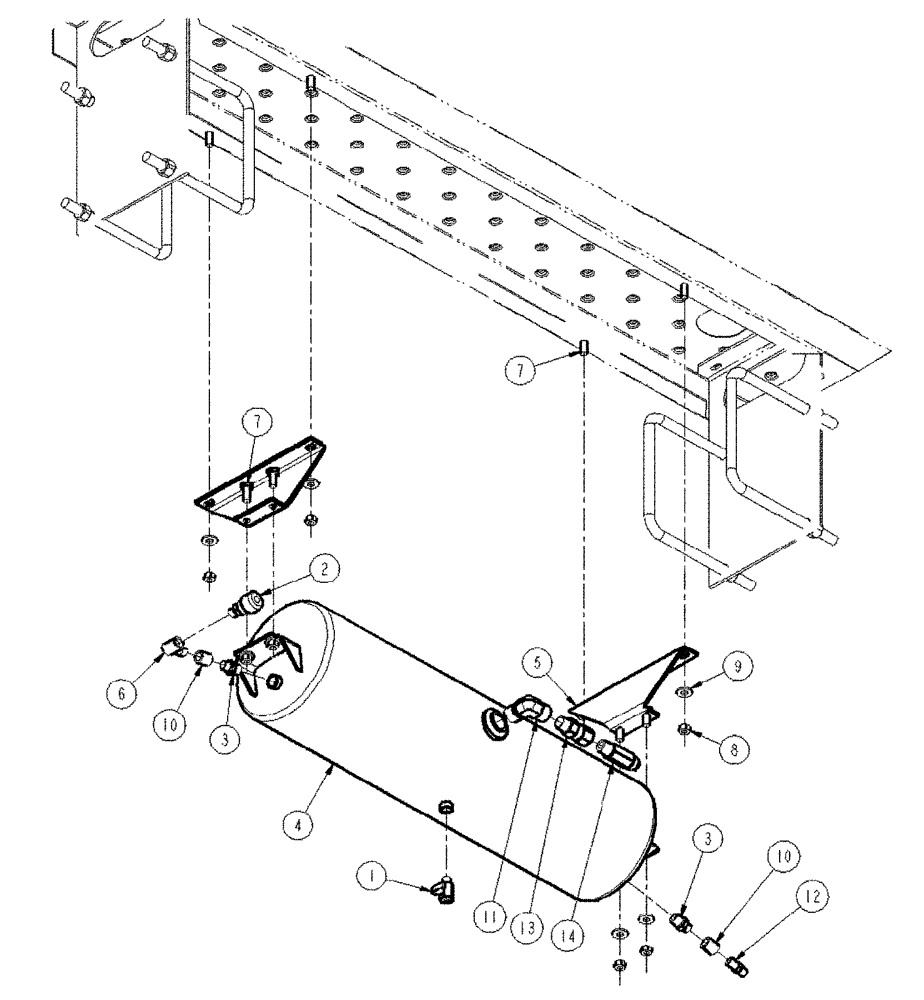

Запчасти Case IH SPX4260 (04-033) - AIR COMPRESSOR TANK GROUP Suspension & Frame

1

BN2292239

DRAINCOCK/TAP SUPPLY

BW103385

1шт.

2

BN2393326

COUPLING

B32

1шт.

3

BN313188

BUSHING

3/8NPT-1/4NPT, SS

2шт.

4

BN316553

AIR TANK

8" DIA. X 32"

1шт.

5

BN320973

BRACKET, SUPPORTING

Air Tank

2шт.

6

BN73017

ELBOW

90 Street-1/4" SS

1шт.

7

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

8шт.

7

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

8

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

9

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

16шт.

10

BN73015

COUPLING

1/4" NPT SS Full

1шт.

11

BN1420036

NIPPLE

1/4" Close SS

1шт.

12

BN2290174

FITTING

0103-4-6

1шт.
