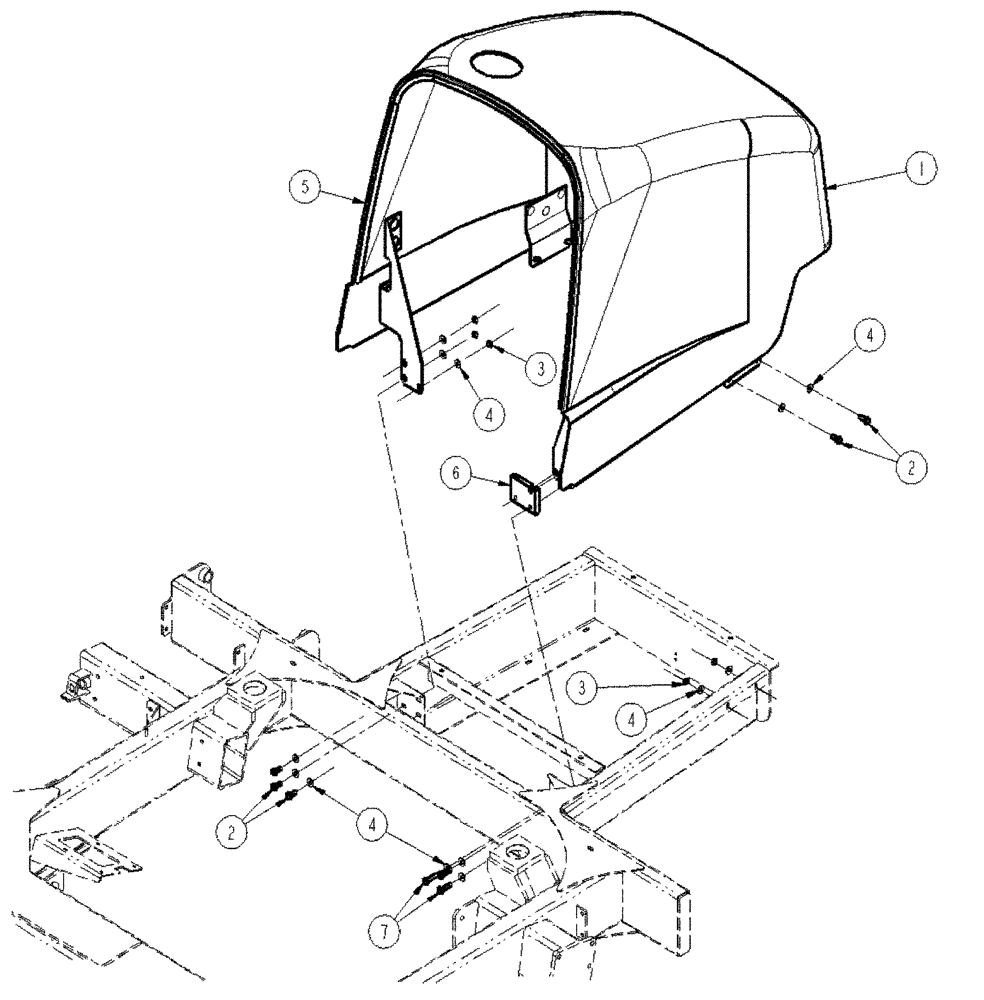

Запчасти Case IH SPX4260 (04-027) - HOOD GROUP, UPPER Suspension & Frame

1

343698A1

HOOD

Upper, Complete

1шт.

2

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

7шт.

3

100037

LOCK NUT,M10 x 1.5, Cl 8

10шт.

4

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

20шт.

5

342046A1

SEAL

Clip On

1шт.

6

342539A1

SPACER

Fuel Tank Hood

1шт.

7

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

3шт.
