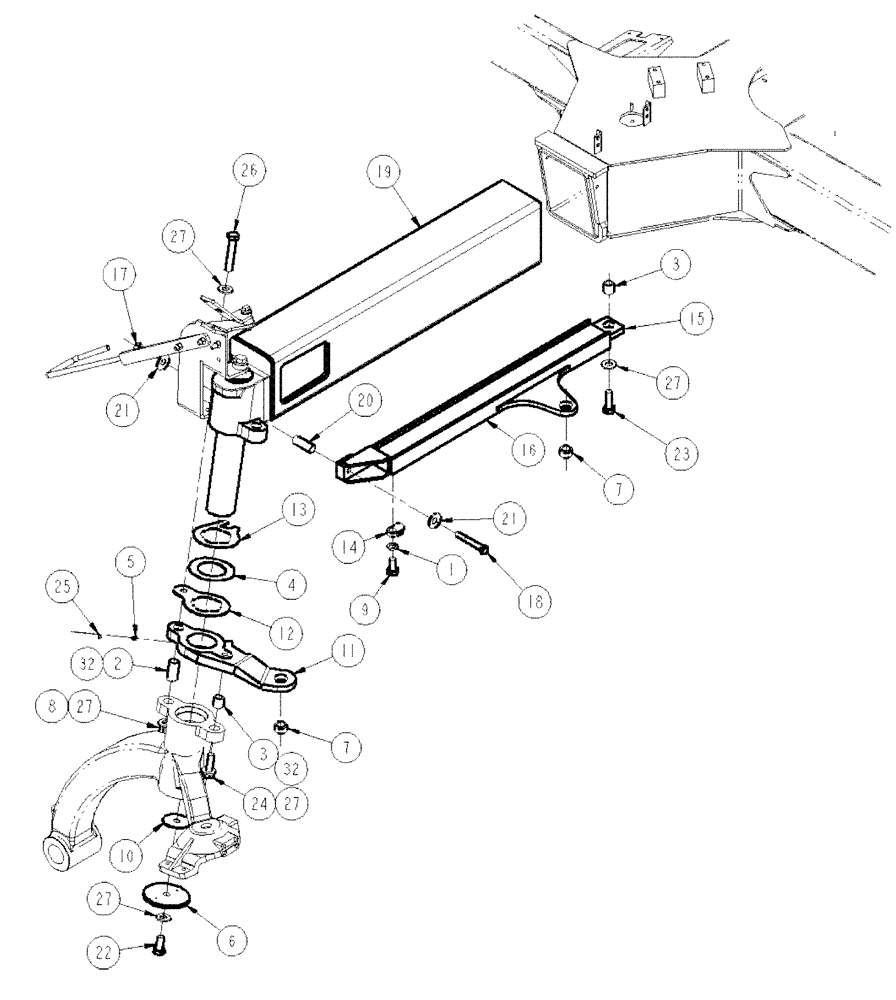

Запчасти Case IH SPX4260 (04-020) - AXLE, STEER, LF Suspension & Frame

1

BN300528

LOCK WASHER

M20, 10.9

1шт.

2

BN301997

DOWEL

Hollow

1шт.

3

BN301998

DOWEL

Hollow

2шт.

4

BN302028

WASHER, THRUST

1шт.

5

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

1шт.

6

BN302052

WASHER,20.32mm ID x 139.7mm OD

1шт.

7

87267020

SPHERICAL BEARING,0.875" ID x 1.5625" OD x 0.703"

Spherical, 1.56" OD .875"

2шт.

8

264031

NUT,M20 x 2.5, Cl 10

1шт.

9

627-20035

BOLT,Hex, M20 x 2.5 x 35mm, Cl 10.9, Full Thd

M20-2.5 X 35, HH, 10.9

1шт.

10

BN312604

SPACER

Shim - Axle

1шт.

11

BN320022

STEERING ARM

LH Machine

1шт.

12

BN312983

WASHER, THRUST

1шт.

13

BN312988

WASHER, THRUST

LH

1шт.

14

BN320759

STOP

Axle Adjust

1шт.

15

87268923

BAR

Axle Slide

1шт.

16

BN322437

SLIDE

Axle ADJ., LF

1шт.

17

86512555

NUT,M16 x 2, Cl 10

1шт.

18

84036080

BOLT,Hex, M16 x 110mm, Cl 10.9

1шт.

19

BN322317

AXLE

LH

1шт.

20

BN322495

BUSHING

Hardened

1шт.

21

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

2шт.

22

9512573

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

1шт.

23

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

1шт.

24

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

1шт.

25

BN69951

CAP

Grease

1шт.

26

86508350

BOLT,Hex, M20 x 110mm, Cl 10.9

1шт.

27

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

5шт.
