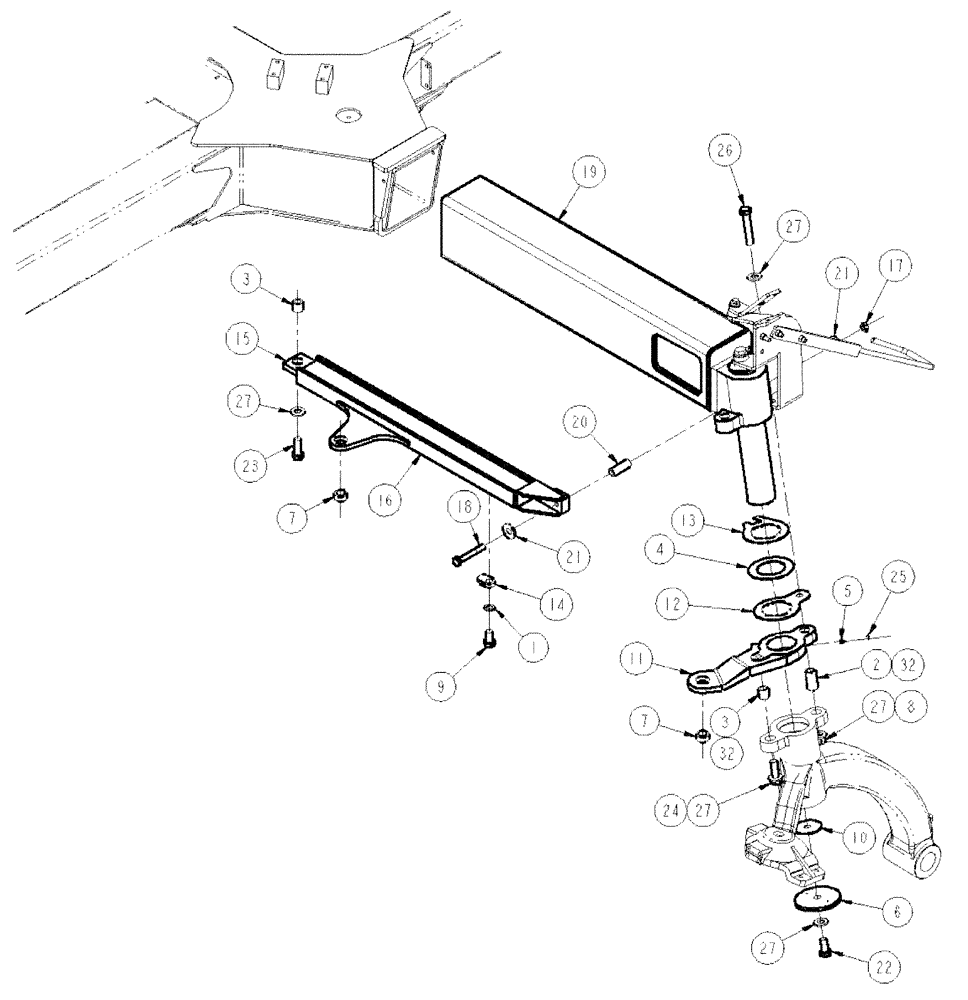

Запчасти Case IH SPX4260 (04-019) - AXLE, STEER, RF Suspension & Frame

1

BN300528

LOCK WASHER

M20, 10.9

1шт.

2

BN301997

DOWEL

Hollow

1шт.

3

BN301998

DOWEL

Hollow

2шт.

4

BN302028

WASHER, THRUST

1шт.

5

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

1шт.

6

BN302052

WASHER,20.32mm ID x 139.7mm OD

1шт.

7

87267020

SPHERICAL BEARING,0.875" ID x 1.5625" OD x 0.703"

Spherical, 1.56" OD .875"

2шт.

8

264031

NUT,M20 x 2.5, Cl 10

1шт.

9

627-20035

BOLT,Hex, M20 x 2.5 x 35mm, Cl 10.9, Full Thd

M20-2.5 X 35, HH, 10.9

1шт.

10

BN312604

SPACER

Shim - Axle

1шт.

11

BN320024

STEERING ARM

RH Machine

1шт.

12

BN312983

WASHER, THRUST

1шт.

13

BN312986

WASHER, THRUST

H

1шт.

14

BN320759

STOP

Axle Adjust

1шт.

15

87268923

BAR

Axle Slide

1шт.

16

BN322681

SLIDE

Axle ADJ., RF

1шт.

17

86512555

NUT,M16 x 2, Cl 10

1шт.

18

84036080

BOLT,Hex, M16 x 110mm, Cl 10.9

1шт.

19

BN322320

AXLE

RH

1шт.

20

BN322495

BUSHING

Hardened

1шт.

21

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

2шт.

22

9512573

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

1шт.

23

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

1шт.

24

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

1шт.

25

BN69951

CAP

Grease

1шт.

26

86508350

BOLT,Hex, M20 x 110mm, Cl 10.9

1шт.

27

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

5шт.
