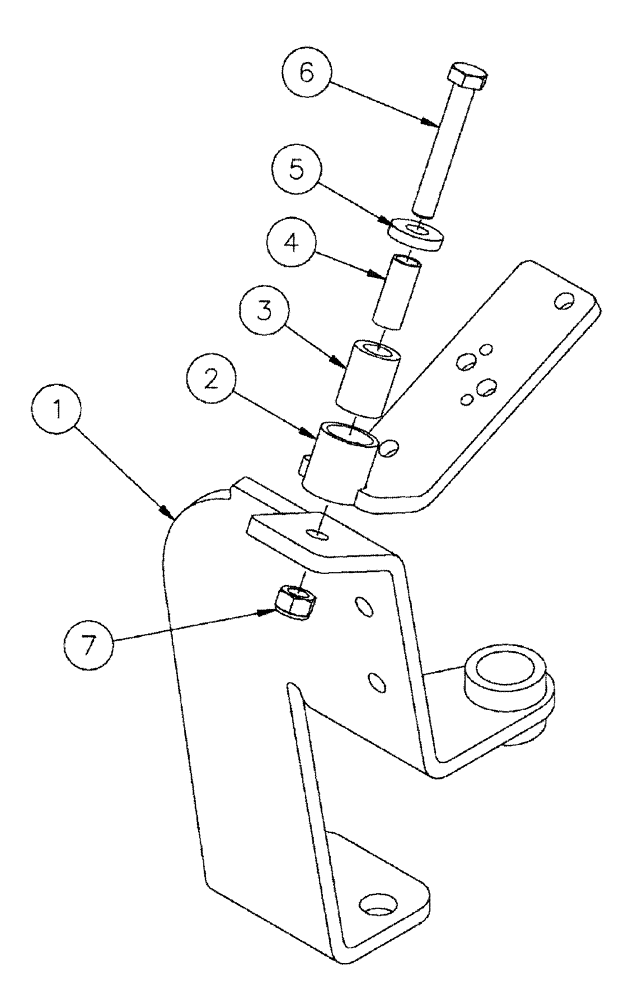

Запчасти Case IH SPX4260 (04-018) - PIVOT HOSE MOUNT ASSEMBLY, RR Suspension & Frame

1

BN313661

MOUNTING PARTS

Pivot, LH

1шт.

2

BN313611

MOUNTING PARTS

Hose, RH

1шт.

3

BN313618

BUSHING,16.15mm ID x 26.42mm OD x 35.05mm L

UHMW

1шт.

4

BN313619

BUSHING,12.7mm ID x 16mm OD x 38.1mm L

Tube

1шт.

5

BN313639

WASHER

M12, 30MM OD

1шт.

6

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

1шт.

7

100038

NUT,M12 x 1.75, Cl 8

1шт.
