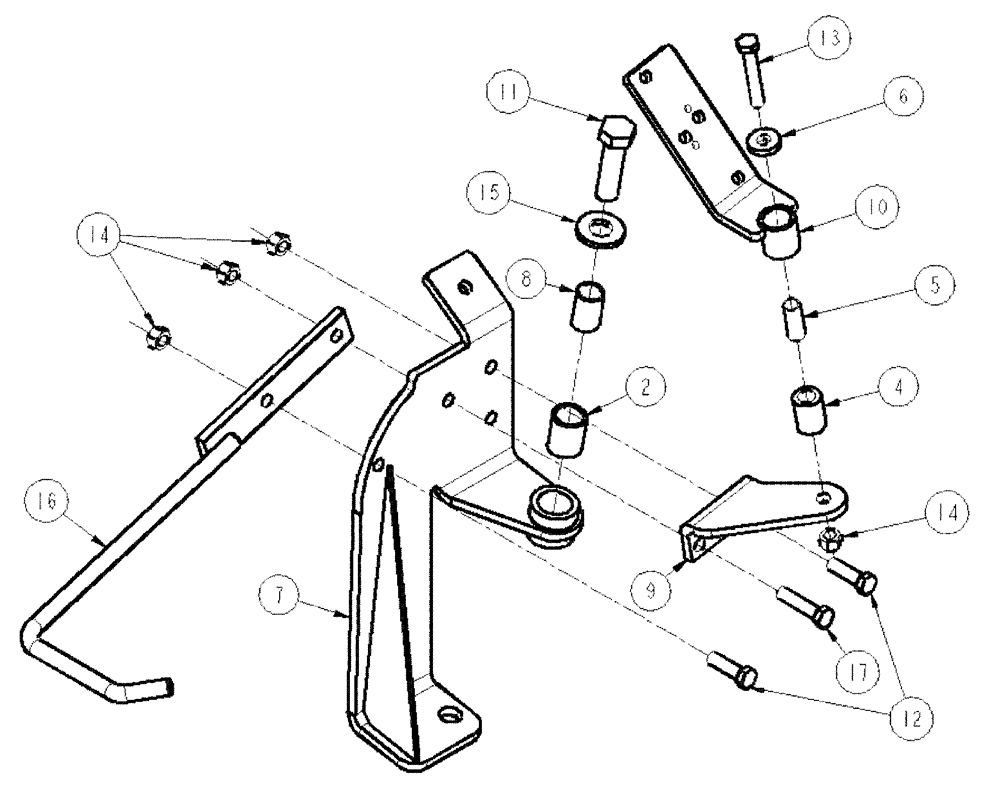

Запчасти Case IH SPX4260 (04-016) - HOSE PIVOT GROUP, RF Suspension & Frame

1

BN1243001

LOCTITE

243-31 Removable

1шт.

2

BN307708

BUSHING

UHMW Hose

1шт.

4

BN313618

BUSHING,16.15mm ID x 26.42mm OD x 35.05mm L

UHMW

1шт.

5

BN313619

BUSHING,12.7mm ID x 16mm OD x 38.1mm L

Tube

1шт.

6

BN313639

WASHER

M12, 30MM OD

1шт.

7

BN313660

MOUNTING PARTS

Pivot, RH

1шт.

8

BN313691

BUSHING

Tube

1шт.

9

BN321286

BRACKET

RF Hose Support

1шт.

10

BN323697

SUPPORT

Hose, RH

1шт.

11

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

1шт.

12

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

13

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

14

100038

NUT,M12 x 1.75, Cl 8

4шт.

15

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

1шт.

16

BN324773

STOP

1шт.

17

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.
