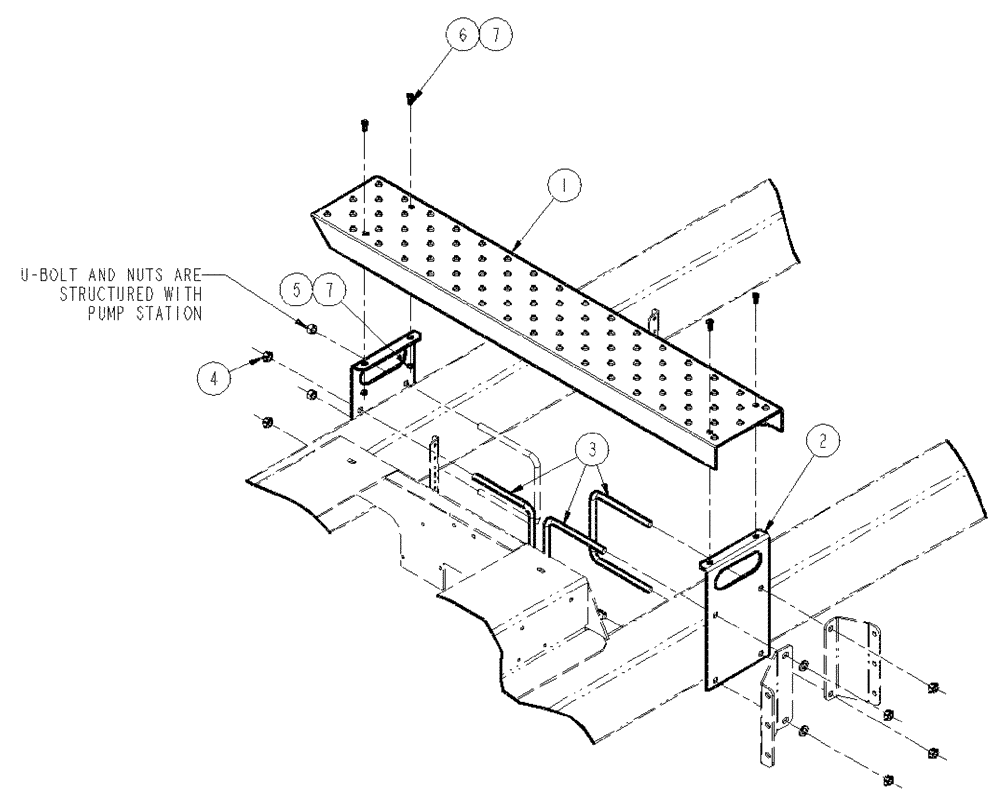

Запчасти Case IH SPX4260 (04-014) - WALKAWAY ASSEMBLY, TANK, REAR Suspension & Frame

1

BN324845

PLATE

Walkway Deck, Center

1шт.

2

BN307181

SUPPORT

2шт.

3

BN312186

U-BOLT

BOLT "U" 16MM X 8.125 X 8.06

3шт.

4

832-46416

NUT,M16 x 2, Cl 8

6шт.

5

86528579

NUT,M8 x 1.25

4шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.
