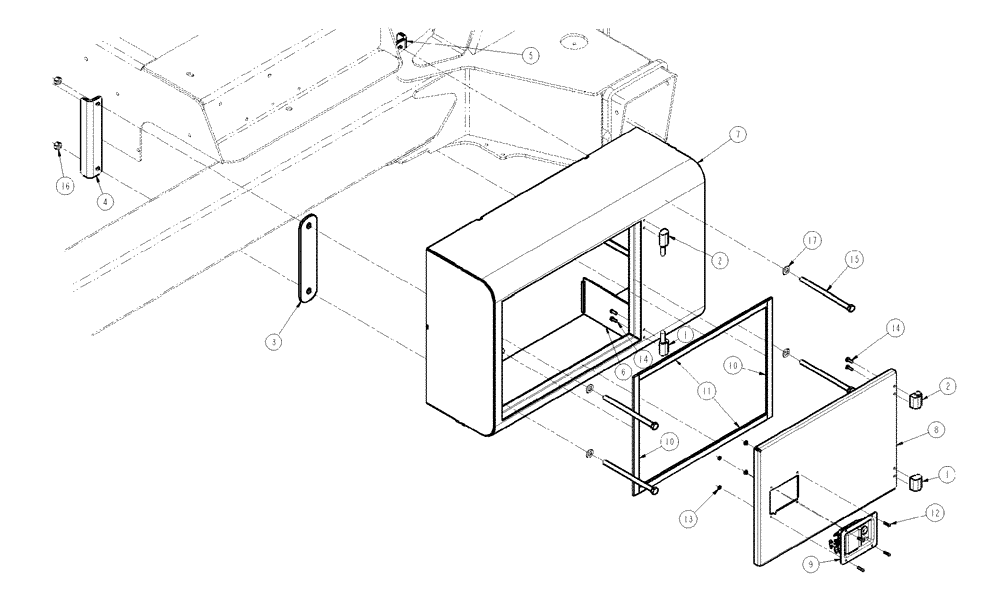

Запчасти Case IH SPX4260 (04-012) - STORAGE BOX GROUP, LH Suspension & Frame

1

BN306286

HINGE

Nylon, Type B, M6

1шт.

2

BN306290

HINGE

Nylon, Type A, M6

1шт.

3

BN306310

PLATE

Spacer

1шт.

4

BN321620

BRACKET

Storage Box, Front

1шт.

5

BN321621

BRACKET

Storage Box, Rear

1шт.

6

BN323911

DIVIDER

Storage Box

1шт.

7

BN323913

BOX

Storage

1шт.

8

BN323918

DOOR

Storage Box

1шт.

9

BN323944

LATCH

Paddle

1шт.

10

BN323948

SEAL

2шт.

11

BN323949

SEALING STRIP

Trim

2шт.

12

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

4шт.

13

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

14

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

8шт.

15

382181

BOLT,Hex, M12 x 1.75 x 190mm, Cl 8.8

4шт.

16

100038

NUT,M12 x 1.75, Cl 8

4шт.

17

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.
