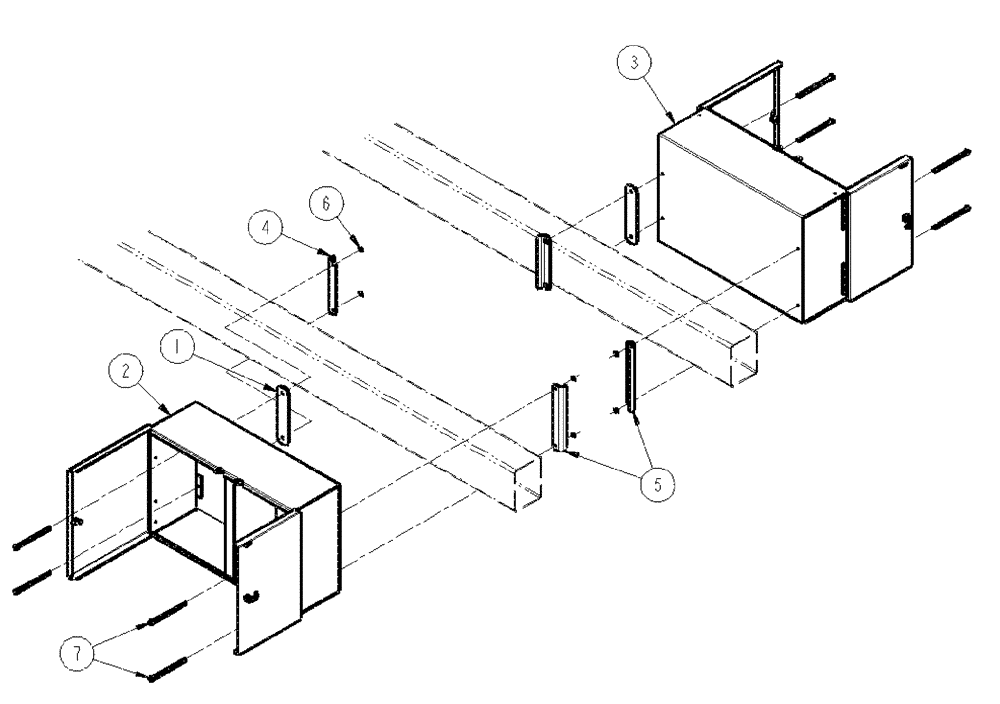

Запчасти Case IH SPX4260 (04-010) - STORAGE BOX GROUP, LH & RH Suspension & Frame

1

BN306310

PLATE

Spacer

2шт.

2

BN321601

BOX

Group, Storage, LH

1шт.

See Fig. 04-011

1шт.

3

BN321602

BOX

Storage, RH

1шт.

See Fig. 04-013

1шт.

4

BN321620

BRACKET

Mount, Storage Box, Front

2шт.

5

BN321621

BRACKET

Storage, Rear

2шт.

6

100038

NUT,M12 x 1.75, Cl 8

8шт.

7

382181

BOLT,Hex, M12 x 1.75 x 190mm, Cl 8.8

8шт.
