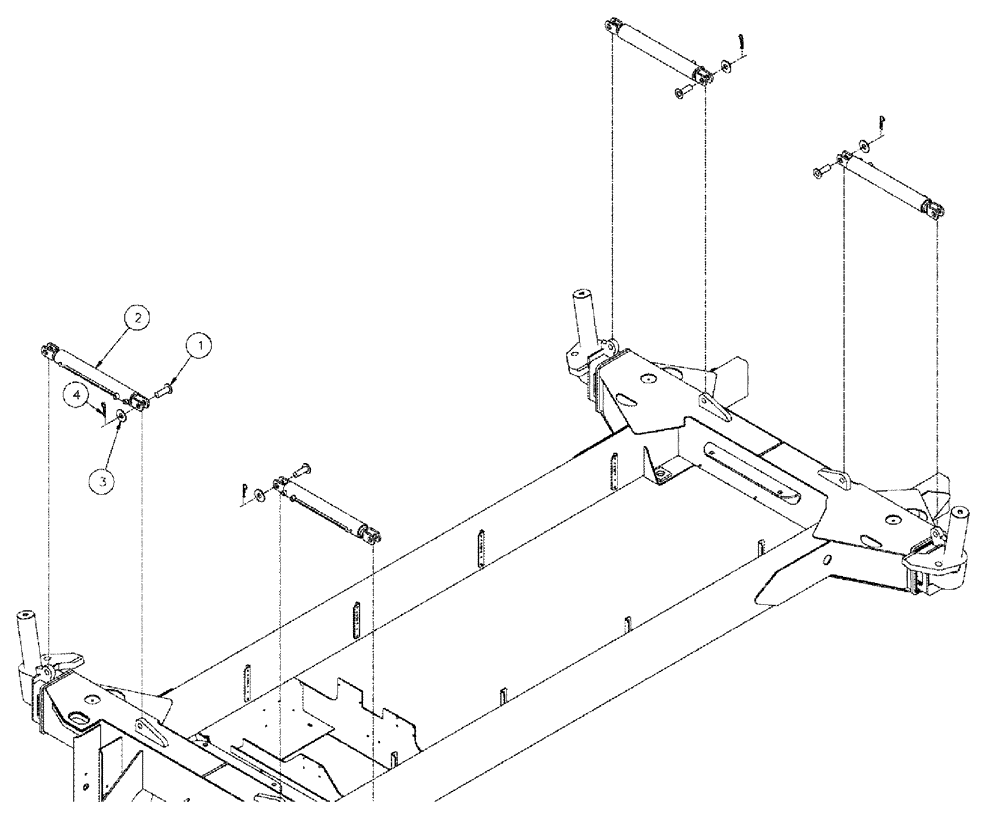

Запчасти Case IH SPX4260 (04-006) - CYLINDER, AXLE GROUP Suspension & Frame

1

86632567

HEADED PIN,30.14mm OD x 66.55mm L

4шт.

2

BN322058

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

2.50 X 16 X 1.25

4шт.

See Fig. 07-002

1шт.

3

87529238

WASHER,1.06" ID x 2" OD x 0.13" Thk

1.0625 x 2 x 0.134 HTS DOR

4шт.

4

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16" x 3/4", Type E

4шт.
