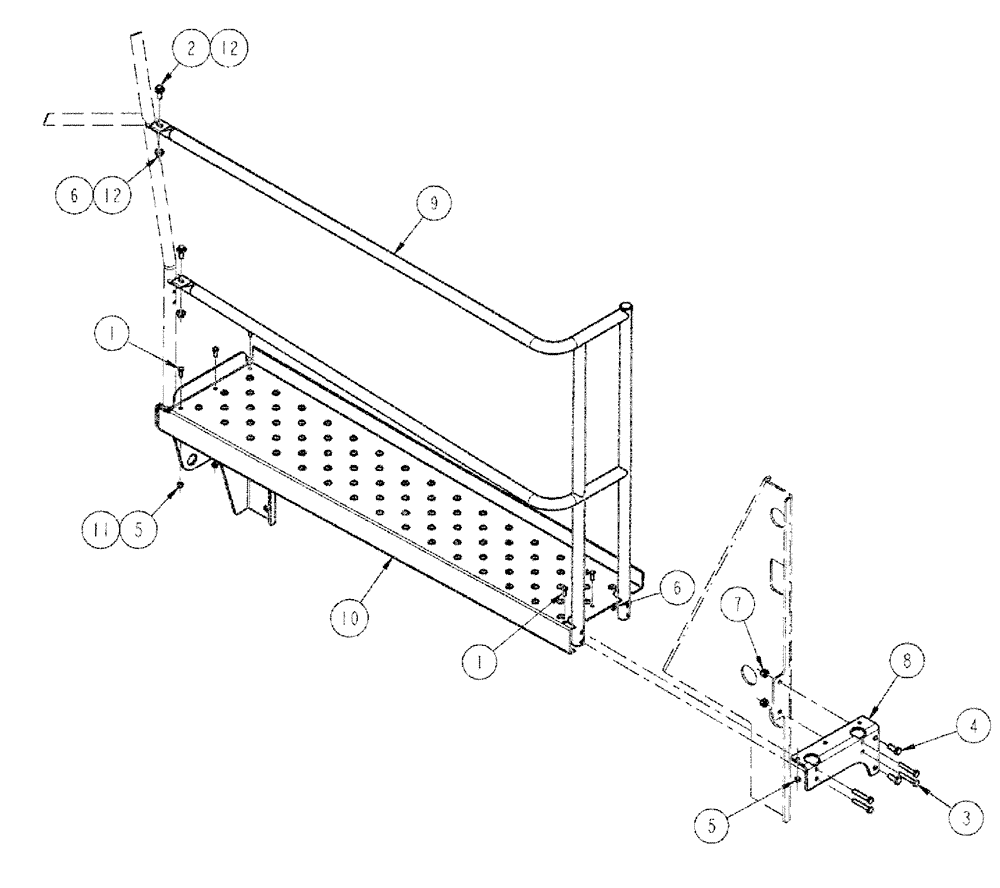

Запчасти Case IH SPX4260 (04-005) - WALKAWAY GROUP, LH REAR Suspension & Frame

1

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

2

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

3

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

4

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

5

86528579

NUT,M8 x 1.25

6шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

6шт.

7

100038

NUT,M12 x 1.75, Cl 8

2шт.

8

BN319132

BRACKET

Mount

1шт.

9

BN319137

HANDRAIL

Rear

1шт.

10

BN319140

PLATE

Rear

1шт.

11

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

12

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

4шт.
