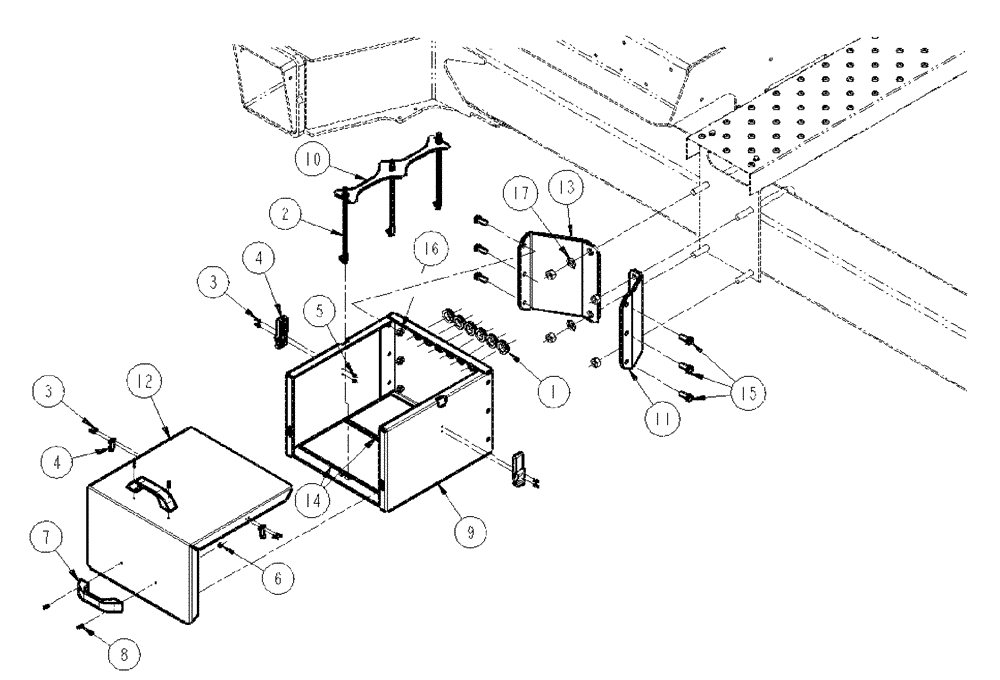

Запчасти Case IH SPX4260 (04-004) - BATTERY GROUP Suspension & Frame

1

BN2290753

GROMMET

2870 (7/8" Hole), Years: -01-APR-09

6шт.

2

BN2390287

BOLT

Battery 390-005

3шт.

1

84203895

LOOM

Split, 1/4" x 635 mm, Start Year: 01-APR-09

1шт.

3

87536486

SCREW,M4 x 0.7 x 16.01mm, Cl 12.9

Hex, M4 x 12, 8.8, Full Thd

8шт.

4

BN306240

LATCH

Soft W/ Rev. Keeper

2шт.

5

385681

NUT,M4 x 0.7, Cl 8

8шт.

6

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

7

BN311626

HANDLE

Molded Grab, Black

2шт.

8

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

4шт.

9

BN321475

BATTERY BOX

1шт.

10

BN321501

CLAMP

Hold Down, Battery

1шт.

11

BN324315

BRACKET

Battery Box

1шт.

12

BN321511

COVER

Battery Box

1шт.

13

BN324316

BRACKET

Battery Box

1шт.

14

BN7140027

PAD

Battery

2шт.

15

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

16

100038

NUT,M12 x 1.75, Cl 8

6шт.

17

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.
