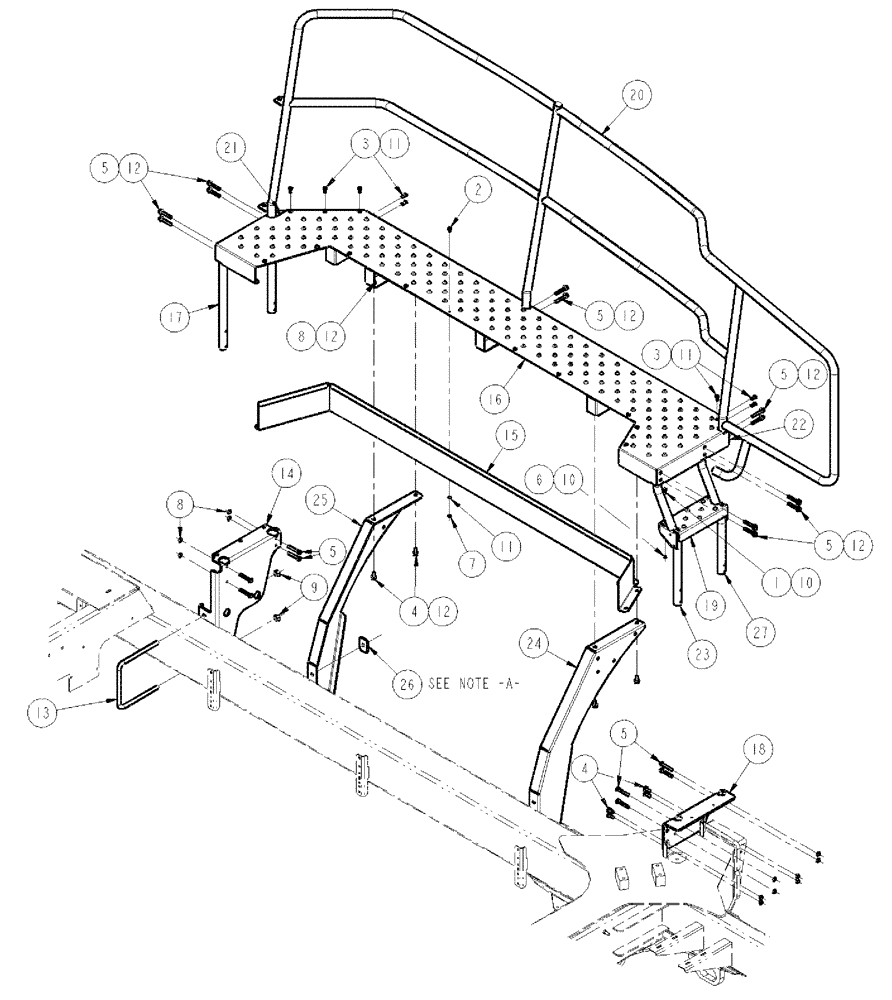

Запчасти Case IH SPX4260 (04-001) - WALKAWAY GROUP, CENTER Suspension & Frame

1

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

2

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

10шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

4

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

8шт.

5

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

20шт.

6

353308

NUT,M6 x 1.0, Cl 8

4шт.

7

86528579

NUT,M8 x 1.25

18шт.

8

100037

LOCK NUT,M10 x 1.5, Cl 8

28шт.

9

832-46416

NUT,M16 x 2, Cl 8

2шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

11

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

23шт.

12

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

22шт.

13

BN312186

U-BOLT

BOLT "U" 16MM X 8.125 X 8.06

1шт.

14

BN319130

BRACKET

Walkway Mount

1шт.

15

BN319133

GUARD

Foot, Walkway

1шт.

16

BN323723

PLATE

Walkway, Deck

1шт.

17

BN319324

SUPPORT

Support, Walkway

1шт.

18

BN319325

BRACKET

Walkway Mount

1шт.

19

BN319338

STEP

Walkway

1шт.

20

BN323726

HANDRAIL

Walkway

1шт.

21

BN319714

CHANNEL

Walkway, Rear

1шт.

22

BN323722

CHANNEL

Walkway, Front

1шт.

23

BN319725

SUPPORT

Step Mount

1шт.

24

BN323780

BRACKET, SUPPORTING

Walkway

1шт.

25

BN323782

BRACKET, SUPPORTING

Walkway

1шт.

26

BN306400

WASHER

Retainer (.66" ID)

2шт.

27

BN322928

SUPPORT

step Mount

1шт.
