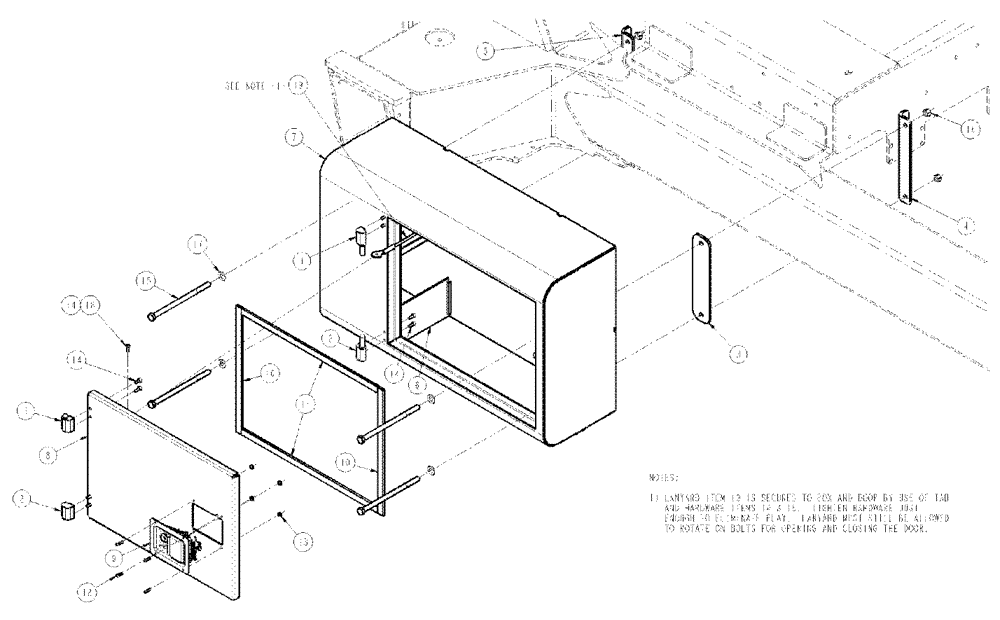

Запчасти Case IH SPX4260 (11-040) - STORAGE BOX GROUP, RH Options

1

BN306286

HINGE

Nylon, Type B, M6

1шт.

2

BN306290

HINGE

Nylon, Type A, M6

1шт.

3

342601A1

PLATE

Spacer

1шт.

4

342600A1

BRACKET

Mount, Storage Box, Front

1шт.

5

BN321621

BRACKET

Mount, Storage Box, Rear

1шт.

6

BN323911

DIVIDER

Storage Box

1шт.

7

342597A1

BOX

Storage, RH

1шт.

8

342577A1

DOOR

storage box RH

1шт.

9

BN323944

LATCH

Paddle Handle

1шт.

10

BN323948

SEAL

Trim

2шт.

11

BN323949

SEALING STRIP

Trimseal

2шт.

12

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

4шт.

13

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

14

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

10шт.

15

814-12200

BOLT,Hex, M12 x 1.75 x 200mm, Cl 8.8

4шт.

16

100038

NUT,M12 x 1.75, Cl 8

4шт.

17

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

18

353308

NUT,M6 x 1.0, Cl 8

2шт.

19

BN325687

LATCH

Lanyard, Hood

1шт.
