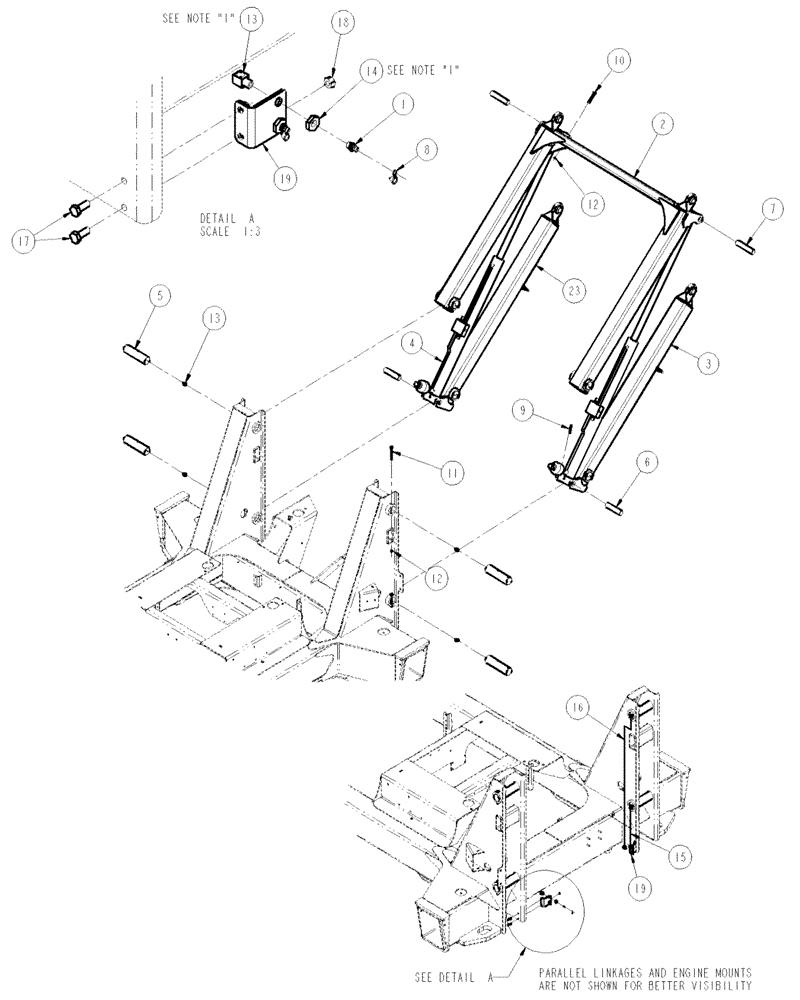

Запчасти Case IH SPX4260 (11-032) - REMOTE GREASE BOOM HITCH Options

1

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.

2

BN321090

UPPER LINK

Group, Parallel

1шт.

See Fig. 04-007

1шт.

3

BN325268

LINK

Group, Parallel, Lwr L

1шт.

4

BN324747

CYLINDER

Group, Para Links

2шт.

See Fig. 07-007

1шт.

5

343354A1

PIN

Boom Hitch, 2"

4шт.

6

BN321135

PIN

2шт.

7

BN321136

PIN

2шт.

8

BN69951

CAP

Grease

4шт.

9

838-3860

LOCK PIN,M8 x 60, Slotted

2шт.

10

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

2шт.

11

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

4шт.

12

100037

LOCK NUT,M10 x 1.5, Cl 8

6шт.

13

BN53569

ELBOW

Grease, 1/8 NPT BH90

8шт.

14

BN53570

BHD LOCK NUT

4шт.

15

BN35810

HOSE,0.13" ID x 16.00", SAE 100R7

Grease

2шт.

16

BN316482

HOSE,0.13" ID x 40.00", SAE 100R7

Grease-1/8" X 40"

2шт.

17

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

18

86528579

NUT,M8 x 1.25

4шт.

19

BN323467

LUBE NIPPLE

Mount, Grease Fittings

2шт.

20

BN307971

SEALANT

Primer - Thread, 0.01

1шт.

21

BN1243001

LOCTITE

243-31 Removable

1шт.

22

BN55015

NIPPLE, LUBE

NIPPLE lithium, 12-grade Ref. #2

1шт.

23

BN325269

LINK

Group, Parallel, Lwr R

1шт.

See Fig. 04-008

1шт.
