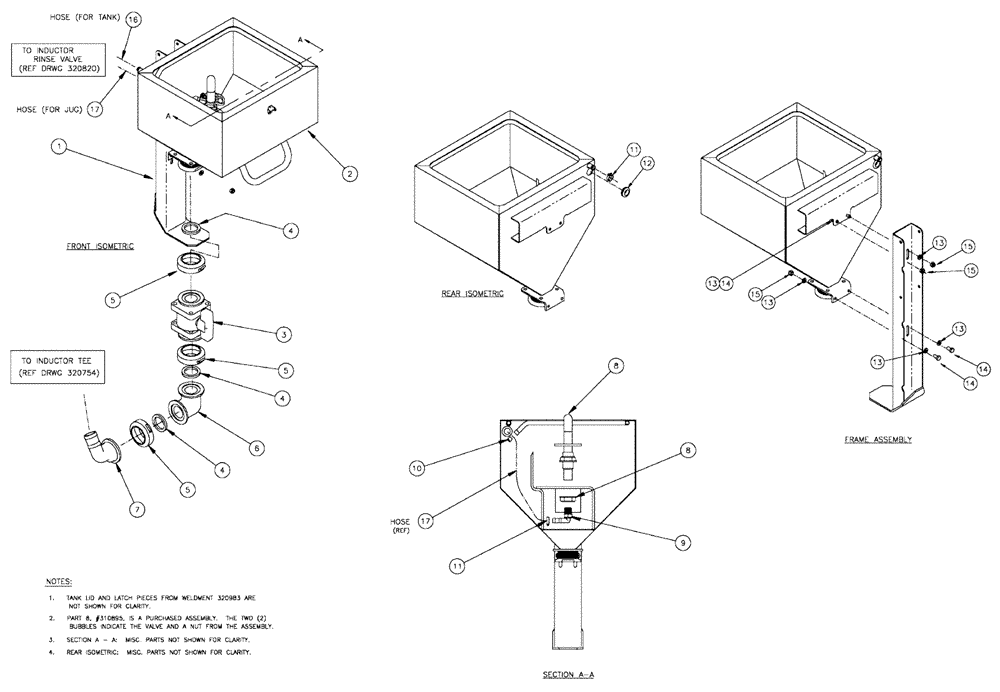

Запчасти Case IH SPX4260 (11-030) - TANK GROUP, W/LIQUID PLUMBING Options

1

BN322941

BRACKET

Mount, Tank

1шт.

2

BN320983

TANK

Inductor 2

1шт.

Tank Lid And Latch Pieces From BN320983 Are Not Shown For Clarity.

1шт.

2a

BN53630

LATCH

Hood, Rubber

1шт.

3

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

Ball, 2" FL, W/T Handle

1шт.

4

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

5

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

6

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

poly 90º 2" flange x 2" flange coupling, short

1шт.

7

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

8

BN310895

VALVE

Inductor Jug Rinse

1шт.

9

BN73511

FITTING

90° 1/2" Female NPT x 1/2" Male NPT

1шт.

10

BN311050

PLUG

Pipe, 1/8" poly hex

1шт.

11

BN75906

CLAMP

3/8 To 1/2 ADJ Hose S

2шт.

12

BN85855

GROMMET

Lg, for 1/2" hose

1шт.

13

BN300497

WASHER,M8, 10.9

8шт.

14

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

15

86528579

NUT,M8 x 1.25

4шт.

16

BN324518

HOSE,0.50" ID x 42.00"

EPDM

1шт.

17

BN324519

HOSE,0.50" ID x 68.00"

EPDM

1шт.
