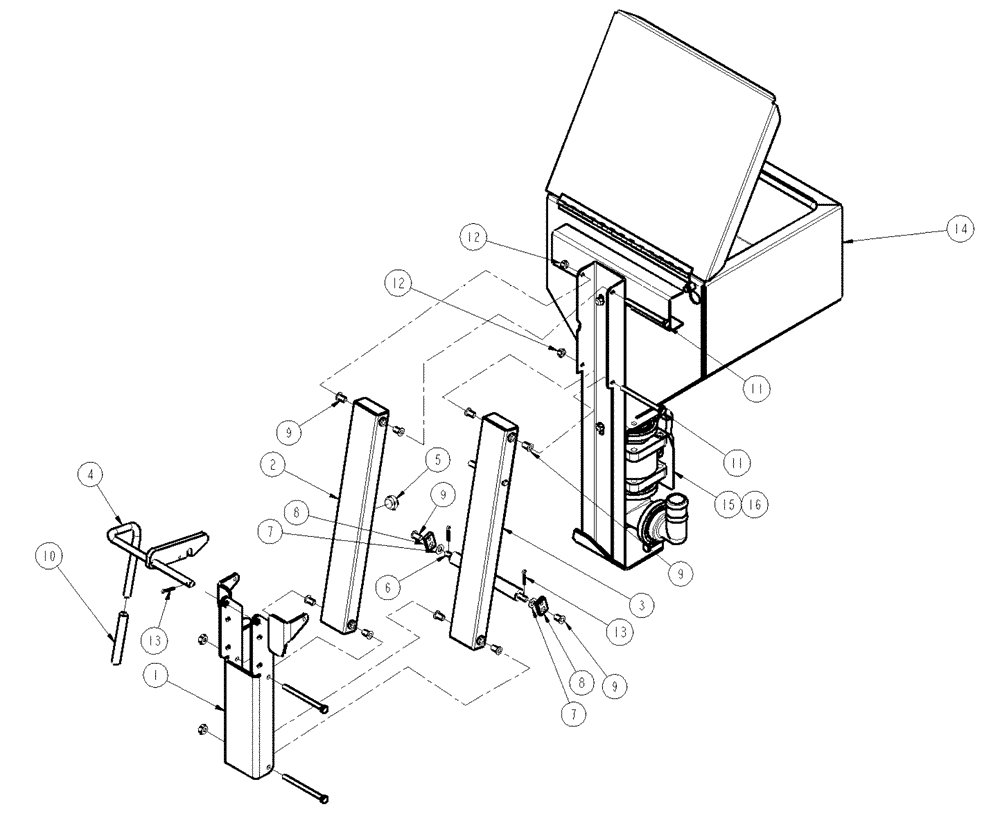

Запчасти Case IH SPX4260 (11-029) - TANK GROUP, W/LINKAGE Options

0

BN311889

SPRING

.50 X 2.00 X .067, SS

1шт.

0

84588820

TENSION SPRING

1.81" OD x 1.45" ID

2шт.

1

BN324764

MOUNT

Linkage Arm

1шт.

2

BN318197

ARM

Linkage (Upper)

1шт.

3

BN318198

ARM

Linkage (Lower)

1шт.

4

BN318200

LATCH

Linkage Arm

1шт.

5

BN319152

RUBBER BUMPER

1" OD

1шт.

6

BN319247

PIN,7.94mm OD x 210mm L

Spring Retension

1шт.

7

BN319150

WASHER

3/8, FW, Nylon

2шт.

8

BN319106

ADJUSTING PLATE

Adjustment

2шт.

9

BN319151

BUSHING

5/16, Shoulder, Nylon

10шт.

10

BN29274

GRIP

Black-Vinyl, .5 id x 4" Long

1шт.

11

87342752

BOLT

Hex, 5/16-18 X 4, G5

4шт.

12

280736

NUT,5/16"-18, GC

4шт.

13

BN1630425

PIN, SPLIT (COTTER)

PIN, COTTER 1/8 X 1

3шт.

14

BN320818

TANK

Group, W/Liquid Plumbing

1шт.

See Fig. 11-030

1шт.

15

BN320997

BRACKET

Decal Mount (SS)

1шт.

16

BN324868

DECAL

Chemical Inductor

1шт.
