(11-028) - VALVE, BRACKET ASSEMBLY

Запчасти Case IH SPX4260 (11-028) - VALVE, BRACKET ASSEMBLY Options

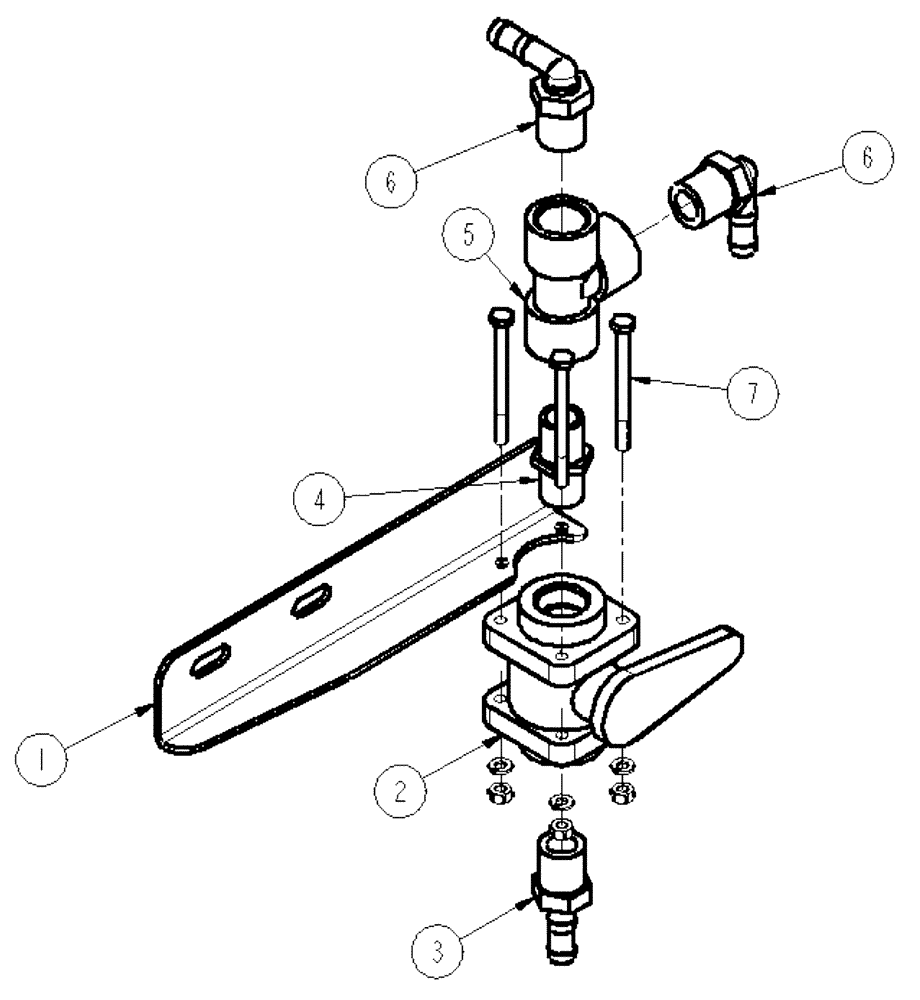

Схема запчастей Case IH SPX4260 - (11-028) - VALVE, BRACKET ASSEMBLY Options
6
4
3
1
5
7
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN324765

BRACKET

Valve, CHEM. Induct.

1шт.

2

BN73564

VALVE

3/4" Ball Poly 2 Way

1шт.

3

BN73568

FITTING

3/4" NPT x 1/2" Hose Barb, Poly

1шт.

4

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

5

BN73560

TEE

Tee, 3/4" NPT, Poly

1шт.

6

BN73578

FITTING

Barb, 3/4NPT x 1/2HB, 90

2шт.

7

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

1шт.

8

BN324867

DECAL

Chem Ind Tank Rinse

1шт.
