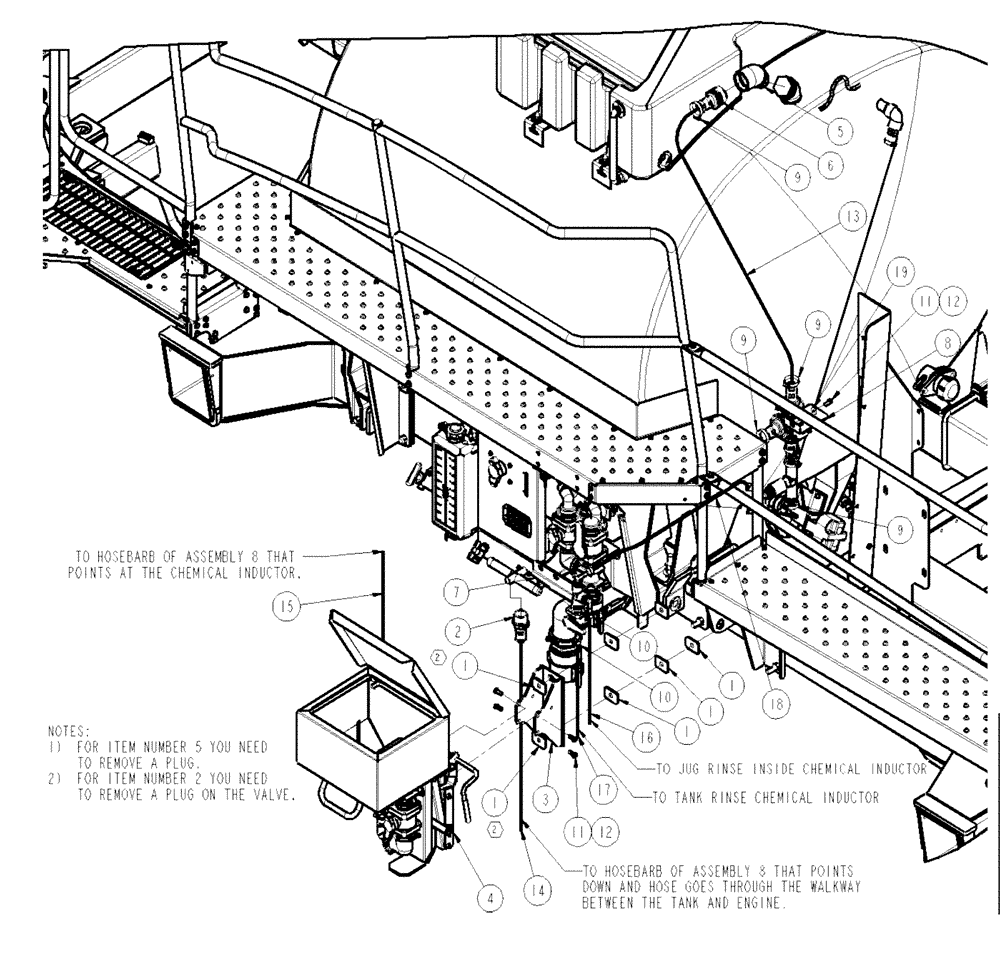

Запчасти Case IH SPX4260 (11-027) - CHEMICAL INDUCTOR GROUP Options

1

BN306400

WASHER

Retainer (.66"ID)

8шт.

2

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

1шт.

3

BN324155

BRACKET

Chem Induct

1шт.

4

BN324763

TANK

Group, W/Linkage Chem

1шт.

See Fig. 09-028

1шт.

5

BN73793

ELBOW,45 Degree Elbow, 2" Female NPT x 2" Female NPT, Poly

45 STR 2" NPT Poly

1шт.

6

BN305163

FITTING,2" - 11-1/2 Male NPT x 1-1/2" Hose Barb, Poly

2" NPT x 1.5" Hose Barb

1шт.

7

BN324806

VALVE

Bracket Assembly

1шт.

See Fig. 09-027

1шт.

8

BN324807

SERVICE KIT

Chem Ind, Tee Group

1шт.

See Fig. 09-031

1шт.

9

BN310448

HOSE CLAMP

#28, Stainless Steel

6шт.

10

BN324022

HOSE CLAMP

#8, Stainless Steel

4шт.

11

BN50254

BOLT,3/8"-16 x 1", Stainless

5шт.

12

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

5шт.

13

BN321053

HOSE,1.50" ID x 55.00"

Kanaflex

1шт.

14

BN321920

HOSE,1.50" ID x 93.00"

Kanaflex

1шт.

15

BN321054

HOSE,1.50" ID x 72.00"

Kanaflex

1шт.

16

BN314453

HOSE,0.50" ID x 50.00"

EPDM

1шт.

17

BN314452

HOSE,0.50" ID x 30.00"

EPDM

1шт.

18

BN54228

HOSE

.50"ID X 20" EPDM

1шт.

19

BN50146

WASHER,3/8", Stainless

2шт.
