(11-024) - MOUNT, FOAMER PUMP GROUP

Запчасти Case IH SPX4260 (11-024) - MOUNT, FOAMER PUMP GROUP Options

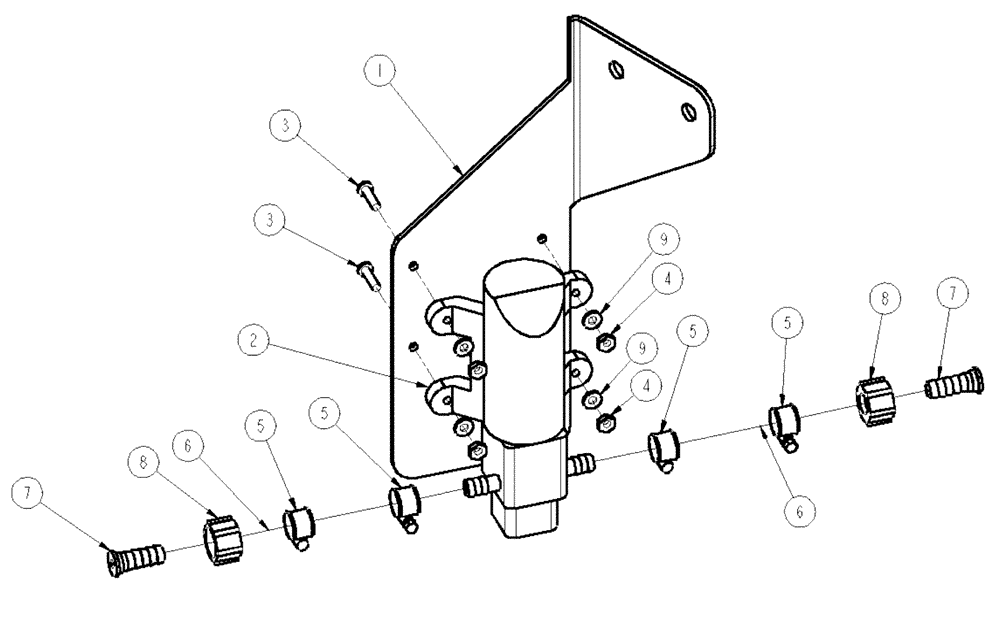

Схема запчастей Case IH SPX4260 - (11-024) - MOUNT, FOAMER PUMP GROUP Options
5
5
6
3
4
1
6
8
7
7
2
5
9
9
3
5
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN325187

BRACKET

Mount, Foam Pump

1шт.

2

BN325143

PUMP

Diaphragm, 1 GPM, 12Volt

1шт.

3

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

4шт.

4

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

5

BN310450

HOSE CLAMP

#3, Stainless Steel

4шт.

6

BN325371

HOSE,0.38" ID x 1.50"

Clear

2шт.

7

BN325353

FITTING

Barb, Nozzle Cap

2шт.

8

BN325352

CAP

Cap, Nozzle

2шт.

9

BN310265

WASHER

10, Stainless Steel

4шт.
