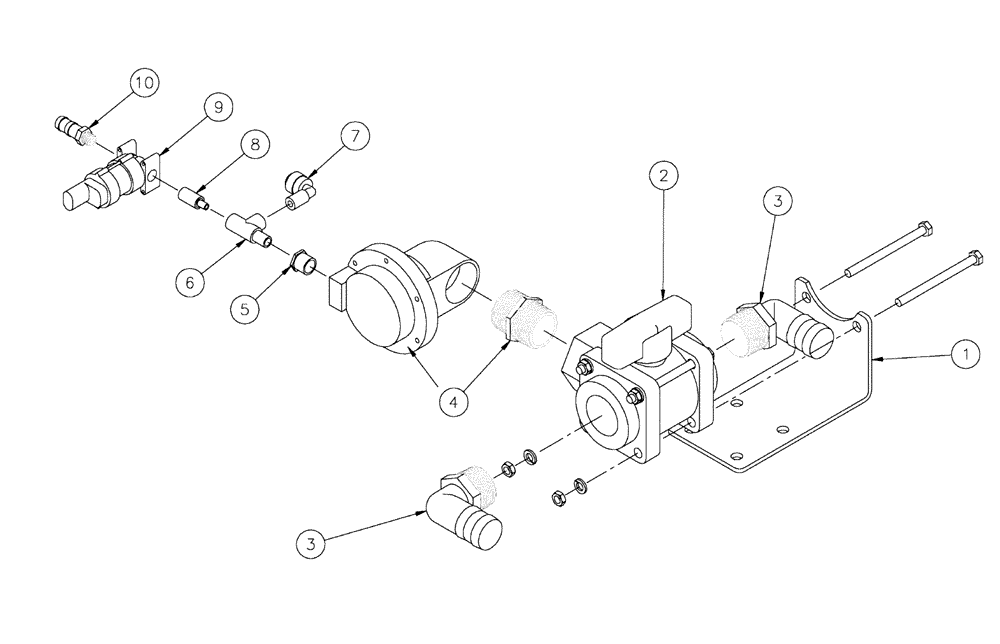

Запчасти Case IH SPX4260 (11-022) - FOAMER DROP VALVE, RIGHT BOOM Options

1

BN318828

BRACKET

Mount, Ball Valve 2"

1шт.

2

BN311011

VALVE,1-1/4" NPT Female; Full Port

3-Way1 1/4 SL

1шт.

3

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

2шт.

4

BN307636

CHAMBER

Foam Mixing

1шт.

5

BN313188

BUSHING

3/8 NPT-1/4 NPT, SS

1шт.

6

BN313189

TEE

4-4-4, NPT, SS

1шт.

7

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

8

BN322427

VENTURI

Foamer Assembly

1шт.

9

BN307938

VALVE

1/4 NPT

1шт.

10

BN324008

FITTING

1/4" NPT x 1/2" Hose Barb, Poly

1шт.
