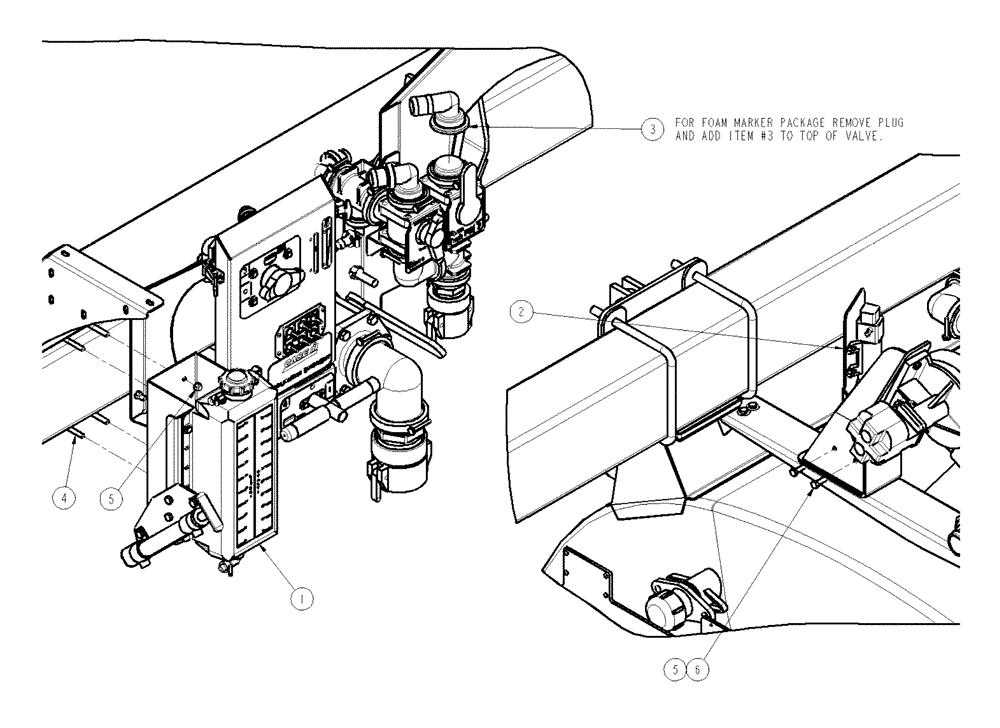

Запчасти Case IH SPX4260 (11-019) - FOAMER STATION GROUP Options

0

BN325307

DECAL

Foam Tank Function

1шт.

1

BN325145

TANK

Soap Group

1шт.

See Fig. 11-025

1шт.

2

BN325215

BRACKET

Mount, Foamer Pump Group

1шт.

See Fig. 11-024

1шт.

3

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

4

BN324566

U-BOLT

BOLT "U" 3/8 X 204MM X 178MM

2шт.

5

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.

6

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.
