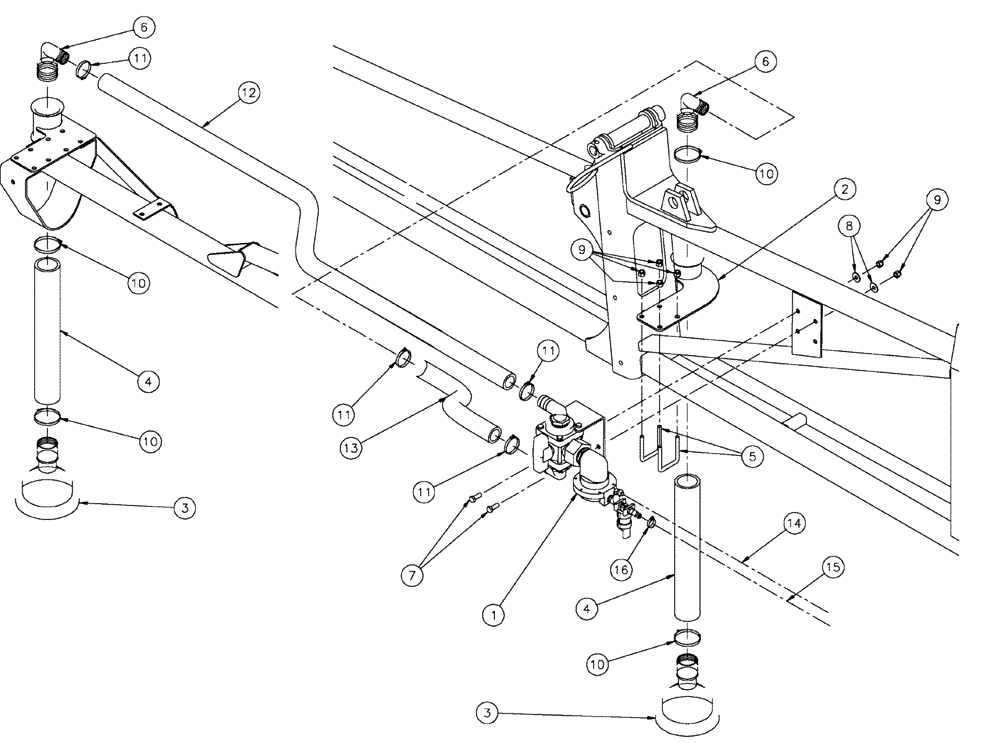

Запчасти Case IH SPX4260 (11-015) - FOAMER 60-80, LEFT DROP GROUP Options

1

BN324002

VALVE

Foam Drop, LT Boom

1шт.

See Fig. 11-023

1шт.

2

BN313193

MOUNTING PARTS

Inner, Foamtube

1шт.

3

BN2403252

BELL

Foam Marker

2шт.

4

BN310941

HOSE,2.00" ID x 16.00"

Drop

2шт.

5

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

2шт.

6

BN310939

FITTING,2" Male Thread x 1-1/4" 90 Degree Hose Barb

2" Hose Barb x 1-1/4" Hose Barb, 90 DEG, Poly

2шт.

7

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

8

BN50146

WASHER,3/8", Stainless

2шт.

9

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.

11

BN320156

HOSE CLAMP

#24, Stainless Steel

4шт.

12

BN322098

HOSE,1.25" ID x 161.00"

Type K

1шт.

13

BN322089

HOSE,1.25" ID x 32.00"

Type K

1шт.

14

BN324944

TUBE

Synflex, 3/8" X 28.5'

1шт.

15

BN324015

HOSE,0.50" ID x 38.50"

EPDM

1шт.

16

BN324022

HOSE CLAMP

#8, Stainless Steel

1шт.
