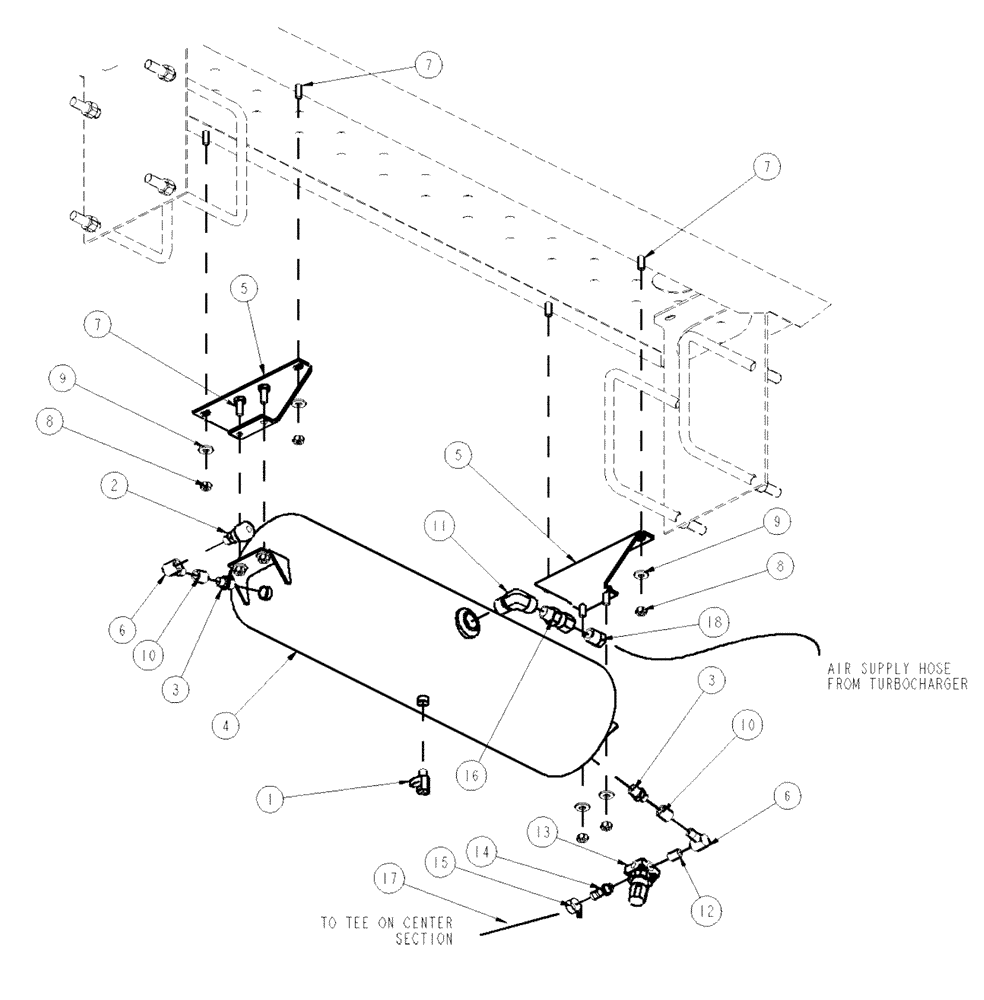

Запчасти Case IH SPX4260 (11-012) - TURBO FOAMER TANK GROUP Options

1

BN2292239

DRAINCOCK/TAP SUPPLY

BW103385

1шт.

2

BN2393326

COUPLING

B32

1шт.

3

BN324303

LUBE NIPPLE

Red-3/8 X 1/4NPT SS

2шт.

4

BN316553

AIR TANK

8" DIA. X 32"

1шт.

5

BN320973

BRACKET, SUPPORTING

Air Tank

2шт.

6

BN73017

ELBOW

90 Street-1/4" SS

2шт.

7

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

8шт.

8

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

9

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

16шт.

10

BN73015

COUPLING

1/4" NPT SS Full

2шт.

11

BN319011

FITTING

NPT -12M-8F 90 Degree

1шт.

12

BN1420036

NIPPLE

1/4" Close SS

1шт.

13

BN325001

REGULATOR

Air Pressure 10 PSI

1шт.

14

BN324008

FITTING

1/4" NPT x 1/2" Hose Barb, Poly

1шт.

15

BN324022

HOSE CLAMP

#8, Stainless Steel

1шт.

16

BN2295247

CHECK VALVE

Air #5003980

1шт.

17

BN324024

HOSE,0.50" ID x 220.00"

EPDM

1шт.

18

BN51102

FITTING

Adapter, 1 /2NPT X 3/8 NPT, STL

1шт.
