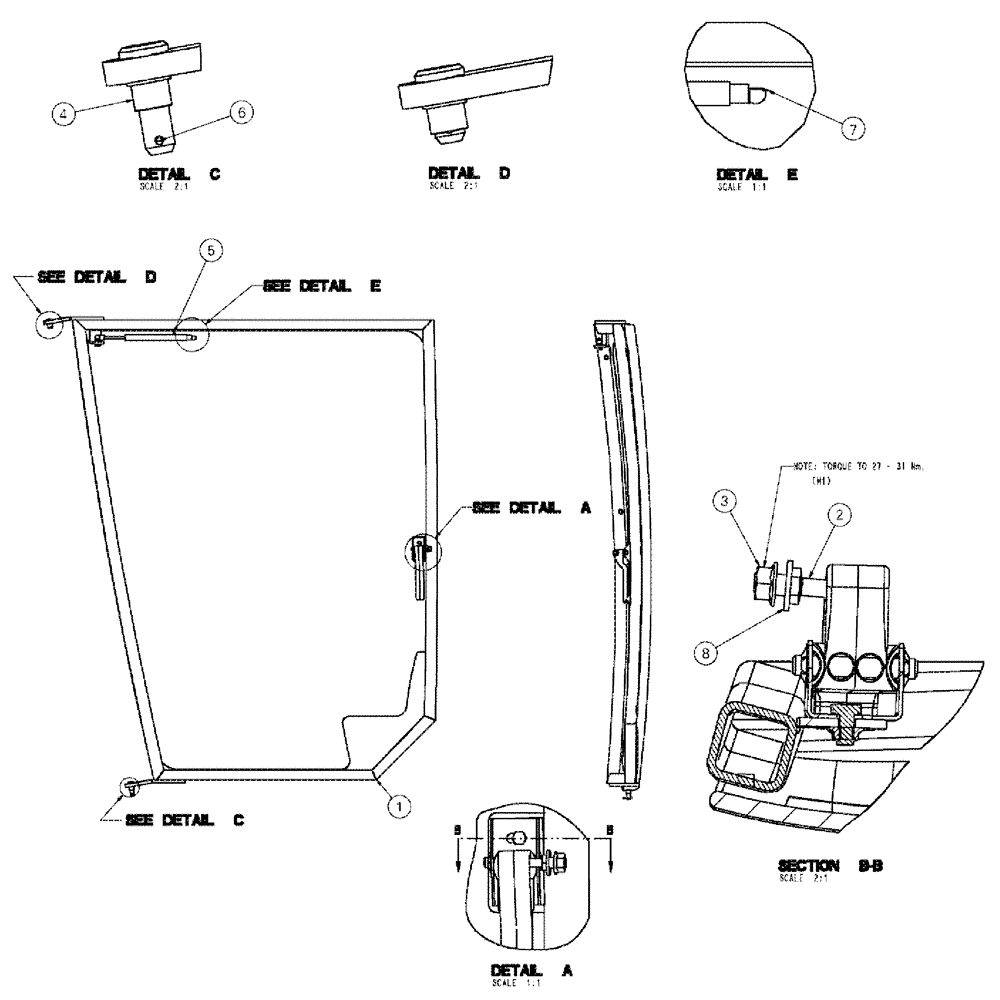

Запчасти Case IH SPX4260 (02-004) - WINDOW GROUP Cab Exterior

1

689175A2

WINDOW

Assembly

1шт.

2

87423532

PIN

RH Door Catch

1шт.

3

86050303

NUT

M8 x 1.25, Flg, Cl 8

1шт.

4

388764A1

BUSHING

Flanged

2шт.

5

356845A1

GAS STRUT,383mm Extended, 253mm Compressed

Spring, Gas

1шт.

6

130003

COTTER PIN,3mm OD x 30mm OAL

1шт.

7

9849996

CLIP

Retainer Ball Stud

2шт.

8

895-30107

WASHER,M8 x 20 x 2

1шт.
