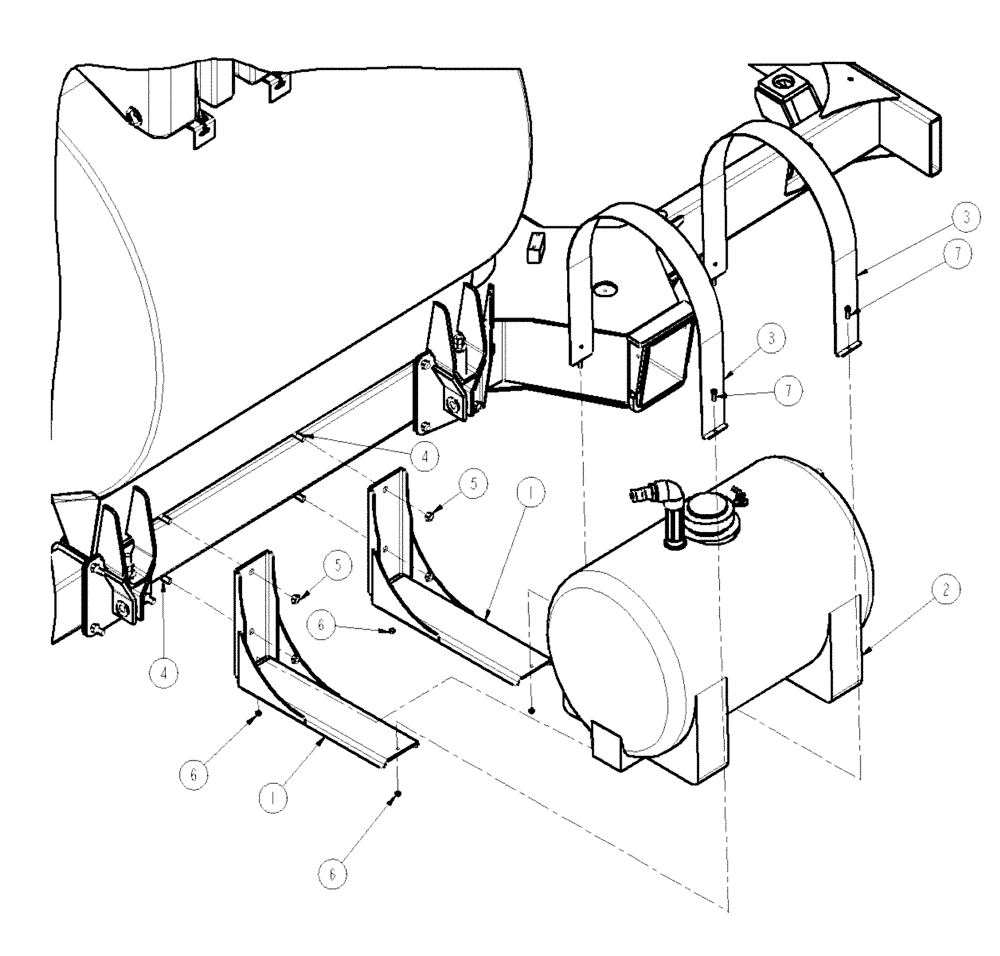

Запчасти Case IH SPX4260 (11-009) - FOAMER TANK GROUP Options

1

BN322949

BRACKET

Foamer Tank

2шт.

2

BN323941

TANK

Foamer Group

1шт.

See Fig. 09-019

1шт.

3

BN323943

BAND

Foamer Tank Mount

2шт.

4

BN314282

U-BOLT

BOLT "U" 16MM X 7.0 X 8.06

2шт.

5

832-46416

NUT,M16 x 2, Cl 8

4шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

7

BN50258

BOLT,3/8"-16 X 1.25", Stainless

2шт.
