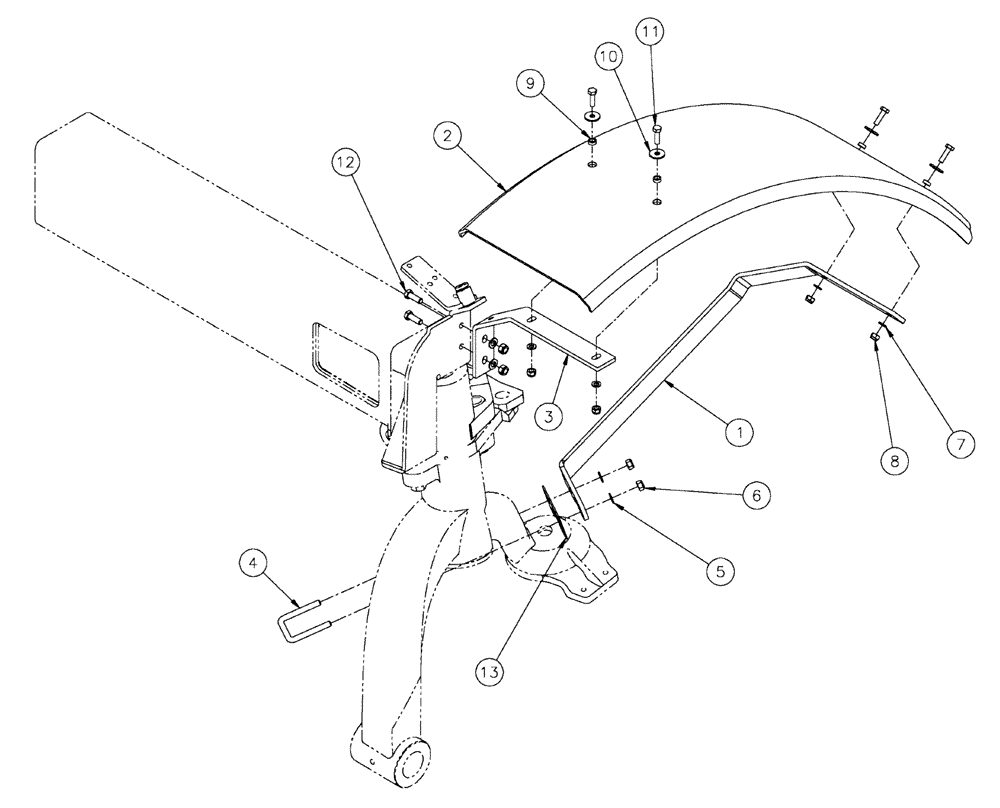

Запчасти Case IH SPX4260 (11-002) - FENDER GROUP, LH Options

1

BN318652

BRACKET, SUPPORTING

Fender LH

1шт.

2

BN318829

FENDER

1шт.

3

BN311623

BRACKET

Fender Support

1шт.

4

342095A1

U-BOLT

BOLT "U" M12 x 3.57 x 2.56

1шт.

5

BN300508

WASHER

4шт.

6

BN313561

LOCK NUT

M12-1.75, NLN, SS

4шт.

7

BN300507

WASHER

M10, Flat, SS

4шт.

8

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

9

BN319403

SPACER

Fender

4шт.

10

87529239

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

0.406 x 1.125 x 0.134 HTS DOR HDN

4шт.

11

BN300472

BOLT

M10-1.5 X 35, HH, SS

4шт.

12

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

13

BN326000

RETAINER

Fender Spacer

1шт.
