(02-003[02]) - CAB EXTERIOR GROUP

Запчасти Case IH SPX4260 (02-003[02]) - CAB EXTERIOR GROUP Cab Exterior

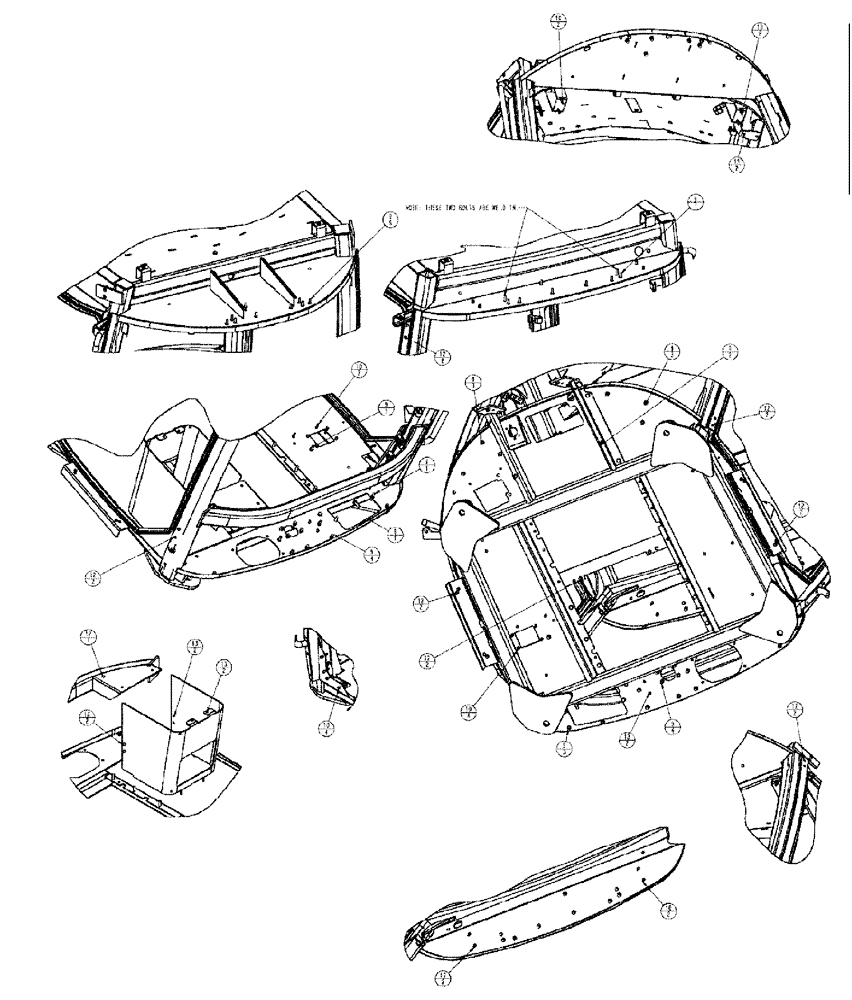

Схема запчастей Case IH SPX4260 - (02-003[02]) - CAB EXTERIOR GROUP Cab Exterior
10
11
12
12
13
12
10
10
10
1
12
9
12
9
9
9
12
9
12
3
12
13
13
12
9
8
13
9
10
10
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

409233A1

CAB

With Structure

1шт.

2

390360A1

SEAL

Door

2шт.

2

343191A1

DOOR SEAL

1шт.

Door seal kit for serial numbers JFG0004095, JFG0004184, JFG0004198, JFG0004225, JFG0004226, JFG0004227, JFG0004244, JFG0004245, JFG0004246, JFG0004250, JFG0004252, JFG0004256, JFG0004257, JFG0004258, JFG0004259, JFG0004284, JFG0004305 and 778C units with cab assembly (P/N 359318A1) S/Ns JEE0150021 & JEE0150021

1шт.

3

86637800

PLUG

button recessed nom 2.500 black

2шт.

4

390837A1

STUD

mount, ball

2шт.

5

3234063R1

BALL STUD,M10 x 1.5

stud

2шт.

6

86639049

PLUG

Cap 1/2" Hole, Black Poly

11шт.

7

353-406

PLUG,Dome, .625" hole, Nylon

1шт.

8

86625127

PLUG,Dome, .375" hole, Nylon

2шт.

9

408567A1

STUD

Threaded Captive

38шт.

10

408568A1

STUD

Threaded Captive

18шт.

11

379540A1

INSERT,M8

Threaded Knurled Open

8шт.

12

408566A1

INSERT,M8

Threaded Knurled Open

15шт.

13

404287A1

INSERT,M6

threaded knurled open

10шт.

14

70-6509T1

SEALANT

Sikaflex-221 Black Polyurethane

1шт.
