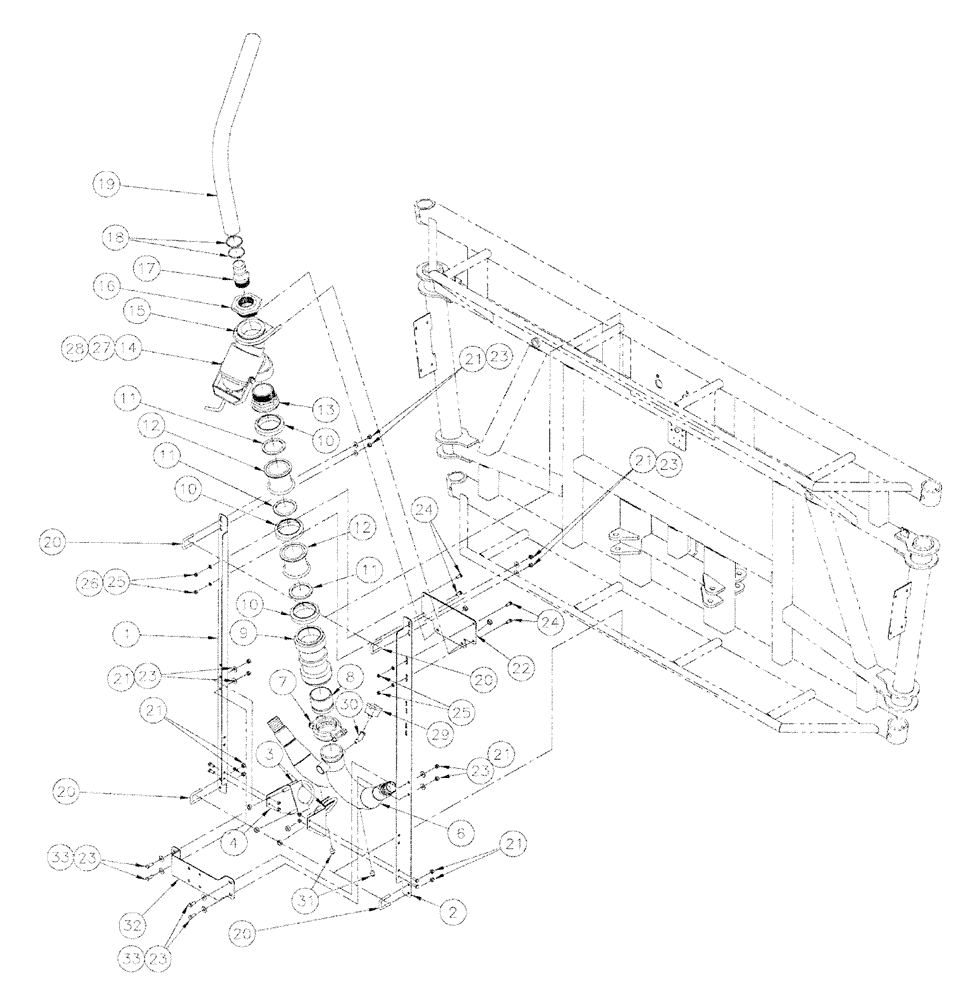

Запчасти Case IH SPX4260 (09-055) - HIGH VOLUME MANIFOLD PLUMBING GROUP Liquid Plumbing

1

BN320217

MANIFOLD

LH

1шт.

2

BN319157

MANIFOLD

RH

1шт.

3

BN2400371

CLAMP

Muffler 657-312

2шт.

4

BN319672

MANIFOLD

H.V., LH

1шт.

5

BN319671

MANIFOLD

H.V., RH

1шт.

6

BN317607

MANIFOLD

Spraybar

1шт.

7

BN2399444

CLAMP,80mm ID

Victaulic 3"

1шт.

8

BN8195374

LUBE NIPPLE

GRVD/MNPT 3 X 3 Lg

1шт.

9

BN321302

METER

RFM200, 2X, W/R STR

1шт.

10

BN321074

CLAMP,101.6mm

Manifold, 3"

3шт.

11

BN321073

GASKET,3" Flange, EPDM

Manifold, 3"

3шт.

12

BN324192

TUBE

CPLG, 3" Manifold Poly

2шт.

13

BN321078

ADAPTER

Manifold, 3" x 3" Male

1шт.

14

BN2397909

STRAINER ASSY.,3" 316 SS Y-Line Strainer w/ 6 mesh Screen

3" LSS-300-B/C

1шт.

15

BN324841

U-BOLT

BOLT "U" Clamp 4" Pipe

1шт.

16

BN85677

REDUCER

Bush 3 X 2 Poly

1шт.

17

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

1шт.

18

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

2шт.

19

BN324858

HOSE

EPDM W

1шт.

20

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

4шт.

21

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

22

BN324838

BRACKET

Strainer, H.V.

1шт.

23

BN50146

WASHER,3/8", Stainless

12шт.

24

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

8шт.

25

BN55361

NUT,5/16"-18, Nylon, Stainless

8шт.

26

BN50142

WASHER,5/16", Stainless Steel

4шт.

27

BN324830

SCREEN

50 Mesh 3" Strainer

1шт.

28

BN324846

SCREEN

8 Mesh 3" Strainer

1шт.

29

BN324844

SENSOR

Digital Pressure

1шт.

30

BN325057

ELBOW

45 1/4 NPT STR Poly

1шт.

31

BN317609

PLUG

3/8, Ploypropylene

2шт.

32

342627A1

BRACKET

HV Valve Mount

1шт.

33

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.
