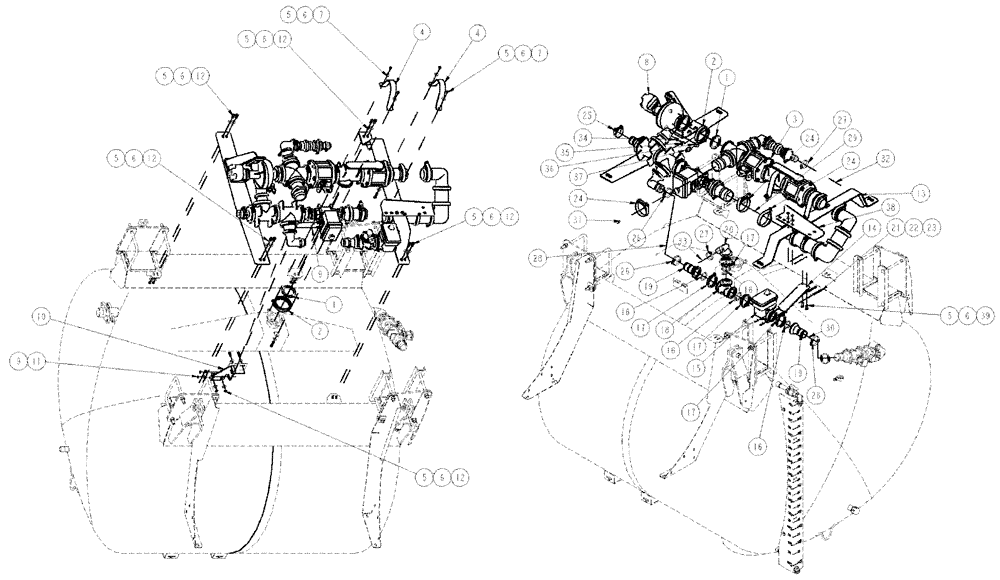

Запчасти Case IH SPX4260 (09-047) - 1200 GALLON TANK, BOTTOM PLUMBING Liquid Plumbing

1

BN321073

GASKET,3" Flange, EPDM

Manifold, 3"

2шт.

2

BN321074

CLAMP,101.6mm

Manifold, 3"

2шт.

3

BN324031

FITTING

Plumbing Group, Under Sump

1шт.

See Fig. 09-043

1шт.

4

BN323887

STRAP

3" Tee Under Sump

2шт.

5

BN50146

WASHER,3/8", Stainless

30шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

7

BN50263

BOLT,3/8"-16 X 1-3/4", Stainless Steel

4шт.

8

BN324033

PUMP

Mounting Assembly

1шт.

See Fig. 09-045

1шт.

9

BN50142

WASHER,5/16", Stainless Steel

4шт.

10

BN324160

BRACKET

Valve, KZ Bypass

1шт.

11

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

12

BN50254

BOLT,3/8"-16 x 1", Stainless

10шт.

13

BN324213

BRACKET

Tee & Valve Supplement

1шт.

14

BN324193

SUPPORT

Tee Under Tank

1шт.

15

BN324054

VALVE,2" Full Port Flange x 2" Full Port Flange

1-1/2" B, Electric

1шт.

16

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

4шт.

17

BN303199

CLAMP,2" Flange

2" Standard Flange

4шт.

18

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

1шт.

19

405780A1

FITTING,2" Flange x 2" Hose Barb

2" Flange x 2" Hose Barb, Poly

2шт.

20

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

21

BN50138

WASHER,1/4", SS

4шт.

22

BN55359

LOCK NUT,1/4"-20, SS

2шт.

23

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

2шт.

24

BN2403395

CLAMP

T-Bolt Band 3.56"

3шт.

25

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

1шт.

26

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

3шт.

27

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

28

BN324529

HOSE,2.00" ID x 16.00"

EPDM

1шт.

29

BN325036

HOSE,3.00" ID x 12.00"

Suction

1шт.

30

BN324530

HOSE,2.00" ID x 36.00"

EPDM

1шт.

31

BN324534

HOSE,3.00" ID x 21.50"

Enforcer

1шт.

32

BN321054

HOSE,1.50" ID x 72.00"

Kanaflex

1шт.

33

BN324533

HOSE,1.50" ID x 60.00"

Suction

1шт.

34

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

35

BN310450

HOSE CLAMP

#3, Stainless Steel

1шт.

36

217-1028

ELBOW,1/8" - 27 Male x 1/4" - 18 Female

1шт.

37

86986400

SWITCH

Pressure, PMLF

1шт.

38

342667A1

SUPPORT

Bypass Loop

1шт.

39

BN50258

BOLT,3/8"-16 X 1.25", Stainless

2шт.
