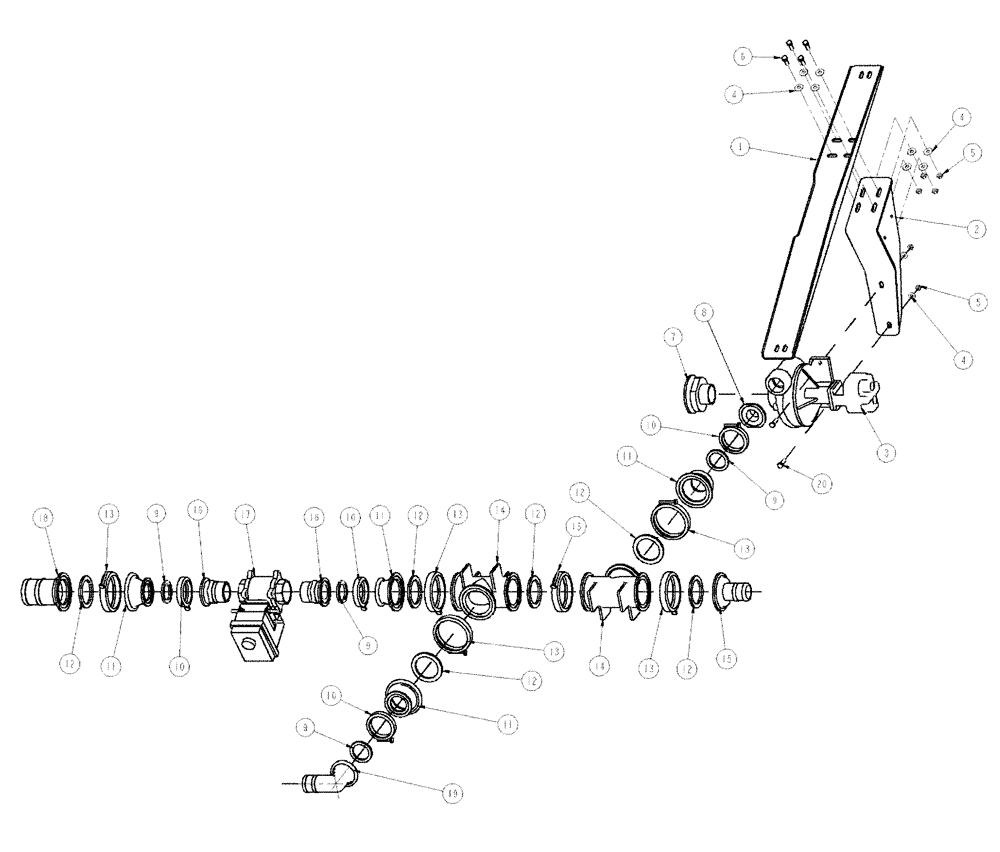

Запчасти Case IH SPX4260 (09-045) - PUMP MOUNTING ASSEMBLY Liquid Plumbing

1

BN323889

BRACKET

Pump Plumbing

1шт.

2

BN323894

SUPPORT

Pump

1шт.

3

BN325245

PUMP

Ace W/HYD. Motor, Seal

1шт.

See Fig. 09-046

1шт.

4

BN50146

WASHER,3/8", Stainless

10шт.

5

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.

6

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

7

BN322930

MANIFOLD

MS, 3" Flange X 2"

1шт.

8

BN322254

ADAPTER,2" Flange x 1 1/2" Male Thread SST

Manfold 2 Full Port X 1.5 NPT

1шт.

9

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

4шт.

10

BN313773

CLAMP,2" Full Port

2" Flange

4шт.

11

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

3" Flange x 2" FP Flange

4шт.

12

BN321073

GASKET,3" Flange, EPDM

Manifold, 3"

6шт.

13

BN321074

CLAMP,101.6mm

Manifold, 3"

6шт.

14

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

Manifold, 3"

2шт.

15

BN321080

FITTING,3" Flange x 2" Hose Barb, Poly

3" x 2" Hose Barb

1шт.

16

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

2шт.

17

BN318863

VALVE

ELECT., 2" Full, 3 SEC.

1шт.

18

BN321075

FITTING,3" Flange x 3" Hose Barb, Poly

3" Flange x 3" Hose Barb, Poly

1шт.

19

BN324065

FITTING,2" Full Port Flange x 2" 90 Degree Hose Barb Elbow

2" Full Port Flange X 2" HS

1шт.

20

BN50258

BOLT,3/8"-16 X 1.25", Stainless

2шт.
